440N Ferrogard 6、9、10、13、14 非接触互锁开关
Allen‑Bradley

Ferrogard™ 6、9、10、13 和 14 非接触互锁开关具有细长型护盖,适合较窄的安装区域。
  1. Product Selection
  2. Overview
  3. Documentation
Open All Close All
Product Selection Chevron DownChevron Down
排序和筛选
CloseClose
筛选和精炼
清除所有
排序 Chevron UpChevron Up
Chevron UpChevron Up
-
Housing Material Chevron UpChevron Up
(14)
(5)
Size Chevron UpChevron Up
(2)
(1)
视图 38 结果
显示 1 - 24 的 38 结果
排序:
最佳匹配
  • 最佳匹配
  • 字母(A-Z)
  • 字母(Z-A)
筛选和精炼
畅销书
Chevron UpChevron Up
产品信息 配置产品 添加到项目
440N-G02149 Guardmaster 440N Non Contact Switch product image
440N-G02149 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS21 GD2, Stainless Steel Housing, 24VDC (1A max Switching Capability), 2 N.C. Safety Contacts, 1 N.O. Aux Contact, 8-Pin Micro (M12) Connector
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02098 Guardmaster 440N Non Contact Switch product image
440N-G02098 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS21, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 250VAC (2A max Switching Capability), 2 N.C. Safety Contacts, 1 N.O. Aux Contact, 6-Pin AC Micro QD
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02059 Guardmaster 440N Non Contact Switch product image
440N-G02059 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS21, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 250VAC (2A max Switching Capability), 2 N.C. Safety Contacts, 1 N.O. Aux Contact, 10 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02083 Guardmaster 440N Non Contact Switch product image
440N-G02083 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS21, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 24VDC (1A max Switching Capability), 2 N.C. Safety Contacts, 1 N.O. Aux Contact, 6 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02090 Guardmaster 440N Non Contact Switch product image
440N-G02090 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS20, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 24VDC (1A max Switching Capability), 2 N.C. Safety Contacts, 4-Pin Micro QD
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02094 Guardmaster 440N Non Contact Switch product image
440N-G02094 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS2, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 24VDC (1A max Switching Capability), 1 N.C. Safety Contact, 1 N.O. Aux Contact, 4-Pin Micro QD
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02097 Guardmaster 440N Non Contact Switch product image
440N-G02097 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS20, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 250VAC (2A max Switching Capability), 2 N.C. Safety Contacts, 4-Pin Micro QD
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02099 Guardmaster 440N Non Contact Switch product image
440N-G02099 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS21, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 24VDC (1A max Switching Capability), 2 N.C. Safety Contacts, 1 N.O. Aux Contact, 6-Pin Micro QD
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02118 Guardmaster 440N Non Contact Switch product image
440N-G02118 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS2 GD2, Stainless Steel Housing, 24VDC (1A max Switching Capability), 1 N.C. Safety Contact, 1 N.O. Aux Contact, 3 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
440N-G02004 Guardmaster 440N Non Contact Switch product image
440N-G02004 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS1, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 250VAC (2A max Switching Capability), 1 N.C. Safety Contact, 4 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
440N-G02019 Guardmaster 440N Non Contact Switch product image
440N-G02019 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS2, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 250VAC (2A max Switching Capability), 1 N.C. Safety Contact, 1 N.O. Aux Contact, 10 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02119 Guardmaster 440N Non Contact Switch product image
440N-G02119 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS20 GD2, Stainless Steel Housing, 24VDC (1A max Switching Capability), 2 N.C. Safety Contacts, 3 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02123 Guardmaster 440N Non Contact Switch product image
440N-G02123 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS21 GD2, Stainless Steel Housing, 24VDC (1A max Switching Capability), 2 N.C. Safety Contacts, 1 N.O. Aux Contact, 3 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02137 Guardmaster 440N Non Contact Switch product image
440N-G02137 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS21 GD2, Stainless Steel Housing, 24VDC (1A max Switching Capability), 2 N.C. Safety Contacts, 1 N.O. Aux Contact, 10 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
440N-G02155 Guardmaster 440N Non Contact Switch product image
440N-G02155 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS13,Stainless Steel Housing, 250VAC (2A max Switching Capability), 1 N.C. Safety Contact, 1 N.O. Aux Contact, 4 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02028 Guardmaster 440N Non Contact Switch product image
440N-G02028 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS6, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 250VAC (2A max Switching Capability), 1 N.C. Safety Contact, 4 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书

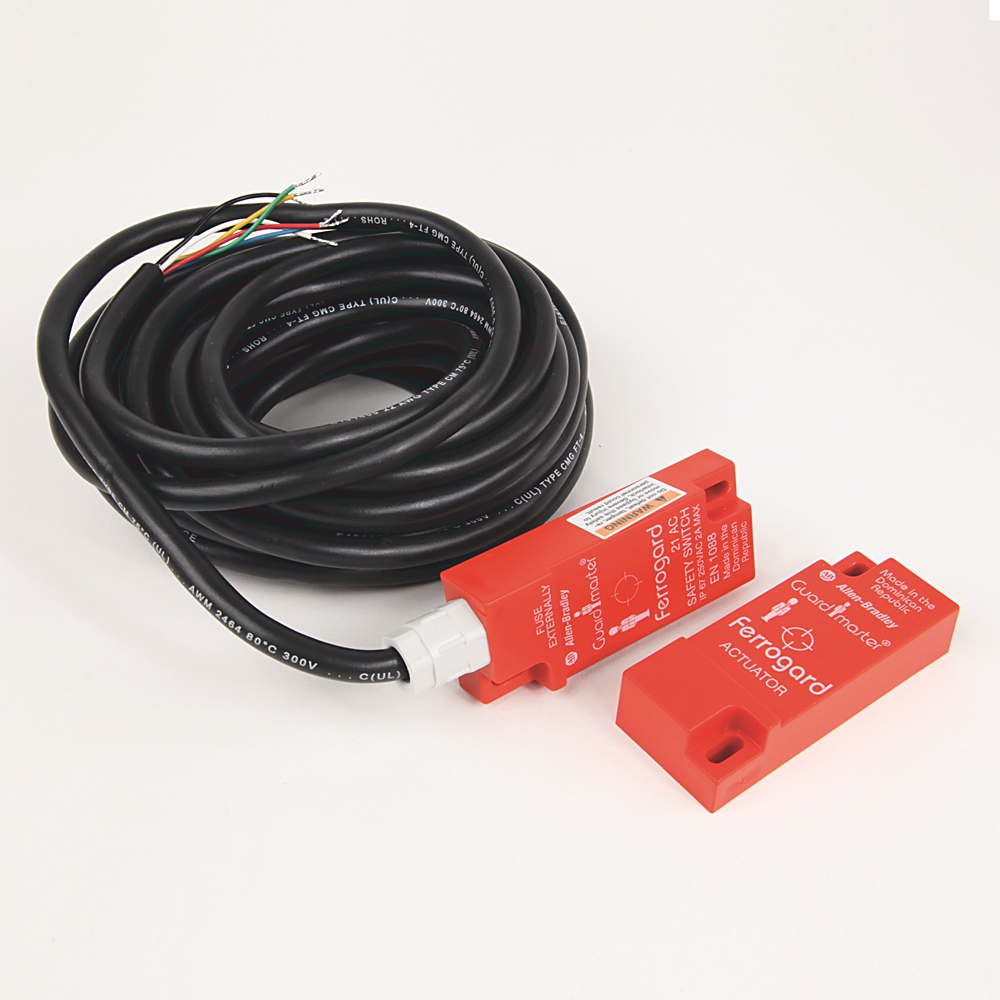

440N-G02060 Guardmaster 440N Non Contact Switch product image
440N-G02060 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS21, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 250VAC (2A max Switching Capability), 2 N.C. Safety Contacts, 1 N.O. Aux Contact, 6 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书

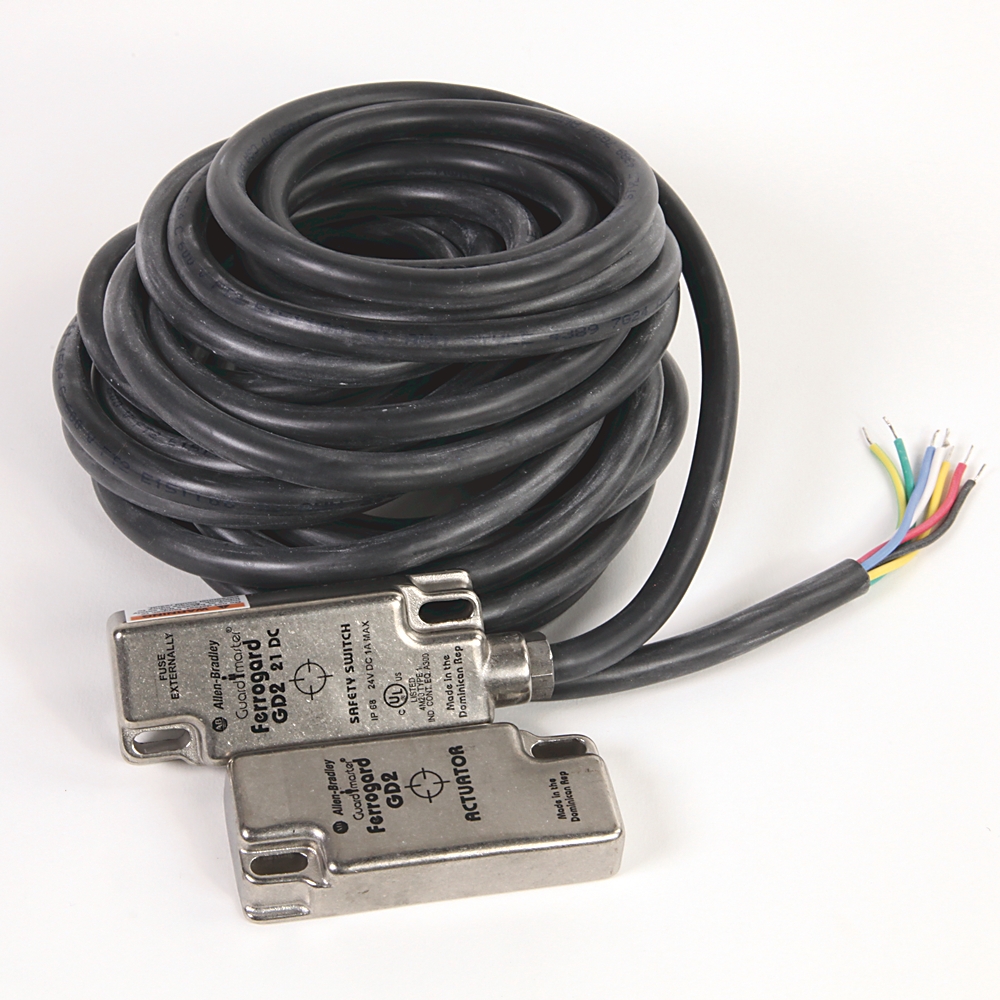

440N-G02143 Guardmaster 440N Non Contact Switch product image
440N-G02143 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS21 GD2, Stainless Steel Housing, 24VDC (1A max Switching Capability), 2 N.C. Safety Contacts, 1 N.O. Aux Contact, 6 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02092 Guardmaster 440N Non Contact Switch product image
440N-G02092 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS2, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 24VDC (1A max Switching Capability), 1 N.C. Safety Contact, 1 N.O. Aux Contact, 2 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02058 Guardmaster 440N Non Contact Switch product image
440N-G02058 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS21, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 24VDC (1A max Switching Capability), 2 N.C. Safety Contacts, 1 N.O. Aux Contact, 2 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
440N-G02082 Guardmaster 440N Non Contact Switch product image
440N-G02082 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS9, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 24VDC (1A max Switching Capability), 1 N.C. Safety Contact, 6 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
440N-G02089 Guardmaster 440N Non Contact Switch product image
440N-G02089 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS9, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 24VDC (1A max Switching Capability), 1 N.C. Safety Contact, 10 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目
畅销书
440N-G02096 Guardmaster 440N Non Contact Switch product image
440N-G02096 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS9, Rectangular, Molded ABS Red Plastic, Switch & Actuator, 24VDC (1A max Switching Capability), 1 N.C. Safety Contact, 4-Pin Micro QD
Chevron UpChevron Up
产品信息 配置产品 添加到项目
440N-G02147 Guardmaster 440N Non Contact Switch product image
440N-G02147 Guardmaster 440N Non Contact Switch
active
Product
Ferrogard, FRS2 GD2, Stainless Steel Housing, 24VDC (1A max Switching Capability), 1 N.C. Safety Contact, 1 N.O. Aux Contact, 10 M Cable
Chevron UpChevron Up
产品信息 配置产品 添加到项目

每页条目数:
24
  • 24
  • 48
  • 72
1 - 24 的 38 结果
CloseClose
比较产品数量:
0
CloseClose
CloseClose
CloseClose
CloseClose
清除所有
对比现在 (0)
Overview Chevron DownChevron Down
Allen Bradley

Ferrogard™ 6、9、10、13 和 14 非接触互锁开关具有细长型护盖,适合较窄的安装区域。它们具有耐环境密封特点,防护等级达到 IP67 (NEMA 6P),这使得它们适合在潮湿环境中使用。这些 Ferrogard 开关具有两个活动感应面,安装更加灵活。

  • 无触点动作
  • 具有较高未对齐容差
  • 高切换电流(最高 3 A,110V 交流)
  • 两个感应面,IP67 (NEMA 6P) 等级
  • 超薄外壳
其他信息

运用我们的安全组件

和集成安全解决方案
为您的人员、生产率和环境提供保护。我们十分了解您的工厂所面临的挑战,并且可通过业内颇为广泛的安全产品组合之一来帮助您实现目标。



认证
UL Listed Component Mark Canadian and United States RequirementsUL Listed Component Mark Canadian and United States Requirements
  • Ferrogard 6、 9、 10:通过 CE 认证,符合所有适用指令
  • Ferrogard 13、 14:根据所有适用指令进行了 CE 认证并拥有 cULus 认证
安全等级
  • 类别 1 设备(按照 ISO13849-1)
  • 双通道互锁,适用于类别 3 或 4 系统
功能安全数据
  • B10d:最小负载下,> 2 x 106 次操作
  • PFHD:> 3 x 10-7
  • MTTFd: > 385 [年]
  • 根据具体应用项目特性,双通道互锁适合在性能等级为 PLe 或 PLd 的系统(根据 ISO 13849-1:2006)中使用或在 SIL2 或 SIL3 系统(根据 IEC 62061)中使用
标准合规性
  • ISO13849-1
  • IEC/EN60204-1
  • NFPA79
  • EN1088
  • AS4024.1
