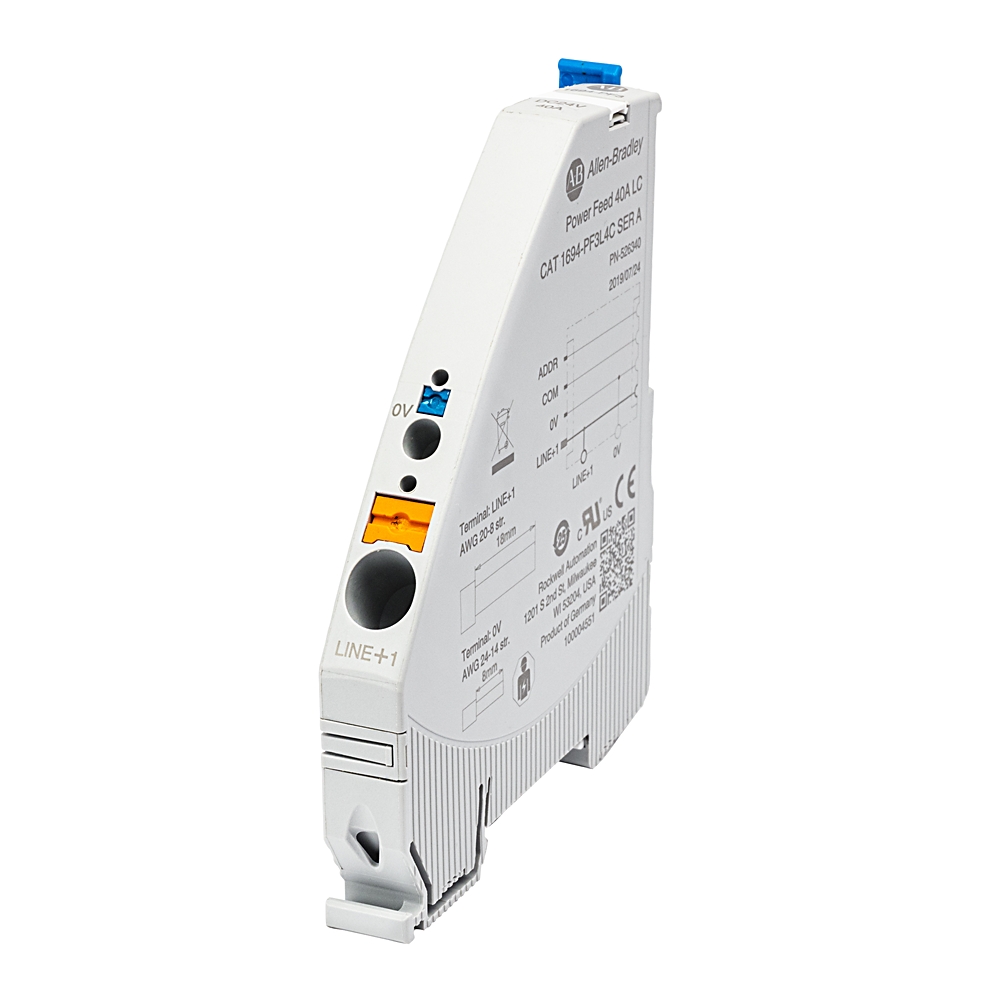

| Supply voltage DC |
24 V
|
|---|---|
| Operating voltage |
24V DC
|
| Operating current |
40 A, maximum, line separated
|
| Voltage type of supply voltage |
DC
|
| Degree of protection (IP) |
IP20
|
| Width |
12.4 mm
|
|---|---|
| Height |
98 mm
|
| Weight per module |
Approx. 0.13 lb
|
| Mounting position |
Middle
|
| Terminal wire gauge |
Push-in terminal PT10 AWG20... AWG8 (0.5mm² to 10mm²), Push-in terminal PT2.5 AWG24... AWG14 (0.14mm² to 2.5mm²)
|
| Depth |
80 mm
|
| Termination type |
Push-in
|
| Degree of pollution |
2
|
|---|---|
| Operating temperature |
-25 °C
|
| Storage temperature |
-40 °C
|
| Humidity / damp heat |
96 hr / 95% climate class 3K3
|
| 基本信息 | 出版 |
|---|---|
| 1694 Specifications Technical Data | 1492-SG122 |
| Topics in Circuit Protection for Power Supplies | 1694-WP001 |
| Instructions for Standard 1694 Electronic circuit protection modules | 1694-IN002 |
| Product Cutsheet | -- |
- Eurasion Economic Community
- Australian RCM
- CE
- UL Listed
- UL Recognized
截至 2025-09-09，此产品已获得上述多项认证。此日期前后销售的产品，所获认证可能有所不同。请查阅产品标签，确认具体产品所持有的相关认证。
技术规格
| Supply voltage DC |
24 V
|
|---|---|
| Operating voltage |
24V DC
|
| Operating current |
40 A, maximum, line separated
|
| Voltage type of supply voltage |
DC
|
| Degree of protection (IP) |
IP20
|
| Width |
12.4 mm
|
|---|---|
| Height |
98 mm
|
| Weight per module |
Approx. 0.13 lb
|
| Mounting position |
Middle
|
| Terminal wire gauge |
Push-in terminal PT10 AWG20... AWG8 (0.5mm² to 10mm²), Push-in terminal PT2.5 AWG24... AWG14 (0.14mm² to 2.5mm²)
|
| Depth |
80 mm
|
| Termination type |
Push-in
|
| Degree of pollution |
2
|
|---|---|
| Operating temperature |
-25 °C
|
| Storage temperature |
-40 °C
|
| Humidity / damp heat |
96 hr / 95% climate class 3K3
|
图纸
文档
|
1694 Specifications Technical Data
基本信息
1492-SG122 |
|
Topics in Circuit Protection for Power Supplies
基本信息
1694-WP001 |
|
Instructions for Standard 1694 Electronic circuit protection modules
基本信息
1694-IN002 |
|
Product Cutsheet
基本信息
-- |
| 基本信息 | 出版 |
|---|---|
| 1694 Specifications Technical Data | 1492-SG122 |
| Topics in Circuit Protection for Power Supplies | 1694-WP001 |
| Instructions for Standard 1694 Electronic circuit protection modules | 1694-IN002 |
| Product Cutsheet | -- |
认证
- Eurasion Economic Community
- Australian RCM
- CE
- UL Listed
- UL Recognized
截至 2025-09-09，此产品已获得上述多项认证。此日期前后销售的产品，所获认证可能有所不同。请查阅产品标签，确认具体产品所持有的相关认证。
