889 DC Micro Cable

Name: 889 DC Micro Cable
Brand: Rockwell Automation
SKU: 889D-F8AC-2

Serial #:

生命周期状态: 活跃

Description

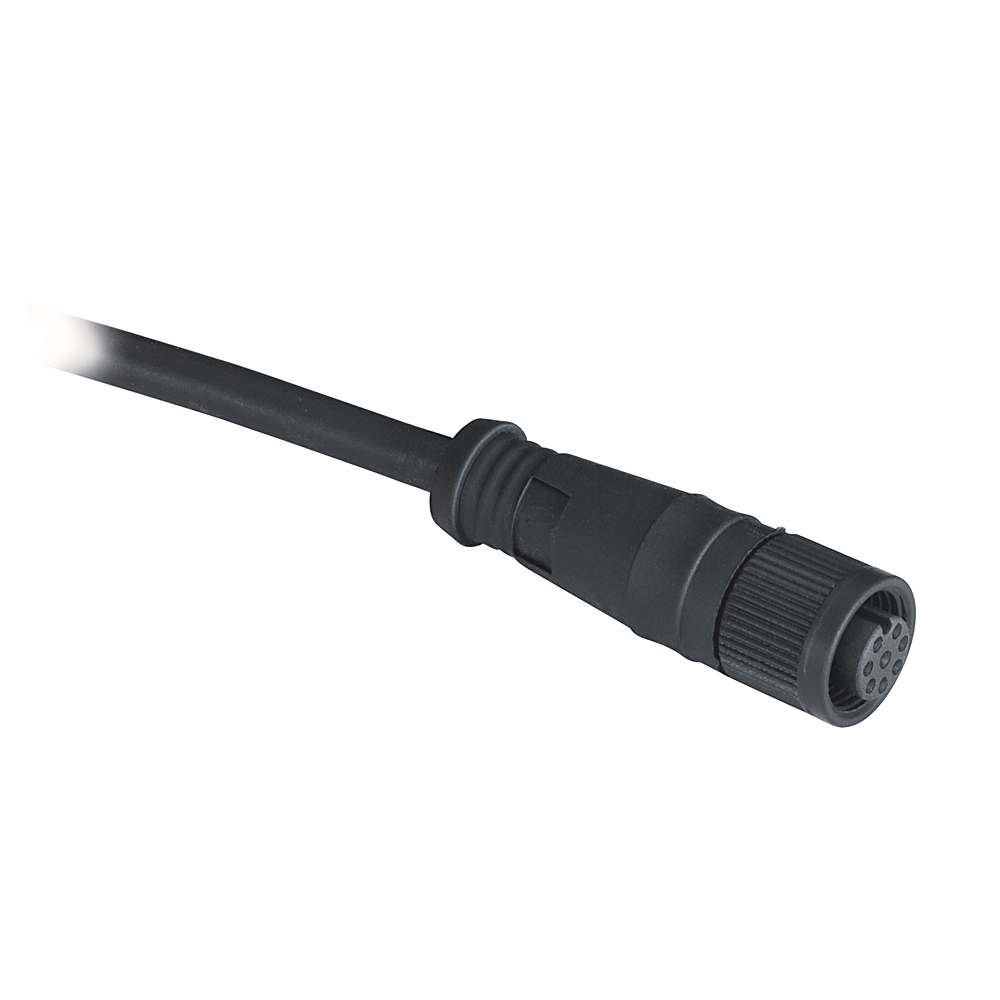

连接线：DC Micro (M12)，直型母头，8针，PVC电缆，黑色，非屏蔽，IEC颜色编码，无连接器，2m (6.56′)，22AWG

生命周期状态: 活跃

Description

连接线：DC Micro (M12)，直型母头，8针，PVC电缆，黑色，非屏蔽，IEC颜色编码，无连接器，2m (6.56′)，22AWG

唯一产品序列号	889D-F8AC-2
通用产品代码（UPC）	611320588859
预计交期	25 天
标准保修期	1年查看详情
原产国	墨西哥

First End Number of pins	--
Jacket	--,PVC Cable, Yellow, 22 AWG
Second End Conductors	Same as First End

Assembly rating	1.5A @ 30V AC/36V DC
Cable rating	4 & 5 core (PUR): UL AWM style 20866 VW-1 80°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant 300V, 8 core (PUR): UL AWM style 20866 90°C @ 300V, CSA II A 90°C @ 300V, TPE: UL AWM style 20327 VW-1 105°C @ 300V, CSA AWM A/B I/II 105 °C 300
Rated current In	1.5 A
Rated voltage	36 V

Mechanical

Bend radius	10 x diam
Cable type	Oil-resistant PVC jacket, 18 and 22 AWG or 24 AWG conductors, 300V
Degree of protection (IP), mounted	IP69K
Enclosure type rating	IP67, NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K
First end connector style	Female, straight (internal threads, except mini receptacles)
Material	Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass
Number of pins	8-pin
Number of poles	8
Second end conductors	Same as first end

Construction

Cable length	2000 mm
Diameter	4 core cable (PUR): 5 mm (0.21 in), 4 core cable (18 AWG TPE): 7 mm (0.28 in), 4 core cable (22 AWG TPE): 4.9 mm (0.19 in), 5 core cable: 6.5 mm (0.25 in), 7 core cable: 7.4 mm (0.29 in), 8 core cable: 7.4 mm (0.29 in)
Diameter, approx	Connector: 14 mm (0.56 in) @ straight female
Length, approx	Connector: 47 mm (1.85 in) @ straight female
Material housing	Plastic
Material of contact surface	Gold
Mounting method	Freely positionable
Product type feature	Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin
Second end termination style	No connector
Second end termination type	Cable - IEC standard color code
Type of plug-in contact, inner side	Female (bus)
With shield connection	False

图纸
2-Dimensional Drawing (PDF)	下载 (PDF)
3-Dimensional STEP model (STP)	下载 (ZIP)
产品图纸	图纸 (DXF)

图纸
2-Dimensional Drawing (PDF) 下载 (PDF)
3-Dimensional STEP model (STP) 下载 (ZIP)
产品图纸图纸 (DXF)

基本信息	出版
Product Cutsheet	--

技术数据	出版
889-td002_-en-p	889-TD002

寻找更多文档？

在技术文档中心查找此产品的技术文档，或搜索我们的文献资料库。

搜索文献资料库

每页项目:

技术说明

想要更多的技术说明？

在我们的知识库中查找罗克韦尔自动化技术专家关于该产品的问题和答案。

搜索知识库

概述

唯一产品序列号	889D-F8AC-2
通用产品代码（UPC）	611320588859
预计交期	25 天
标准保修期	1年查看详情
原产国	墨西哥

Electrical & Connectivity

First End Number of pins	--
Jacket	--,PVC Cable, Yellow, 22 AWG
Second End Conductors	Same as First End

Assembly rating	1.5A @ 30V AC/36V DC
Cable rating	4 & 5 core (PUR): UL AWM style 20866 VW-1 80°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant 300V, 8 core (PUR): UL AWM style 20866 90°C @ 300V, CSA II A 90°C @ 300V, TPE: UL AWM style 20327 VW-1 105°C @ 300V, CSA AWM A/B I/II 105 °C 300
Rated current In	1.5 A
Rated voltage	36 V

Physical Characteristics

Mechanical

Bend radius	10 x diam
Cable type	Oil-resistant PVC jacket, 18 and 22 AWG or 24 AWG conductors, 300V
Degree of protection (IP), mounted	IP69K
Enclosure type rating	IP67, NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K
First end connector style	Female, straight (internal threads, except mini receptacles)
Material	Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass
Number of pins	8-pin
Number of poles	8
Second end conductors	Same as first end

Construction

Cable length	2000 mm
Diameter	4 core cable (PUR): 5 mm (0.21 in), 4 core cable (18 AWG TPE): 7 mm (0.28 in), 4 core cable (22 AWG TPE): 4.9 mm (0.19 in), 5 core cable: 6.5 mm (0.25 in), 7 core cable: 7.4 mm (0.29 in), 8 core cable: 7.4 mm (0.29 in)
Diameter, approx	Connector: 14 mm (0.56 in) @ straight female
Length, approx	Connector: 47 mm (1.85 in) @ straight female
Material housing	Plastic
Material of contact surface	Gold
Mounting method	Freely positionable
Product type feature	Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin
Second end termination style	No connector
Second end termination type	Cable - IEC standard color code
Type of plug-in contact, inner side	Female (bus)
With shield connection	False
