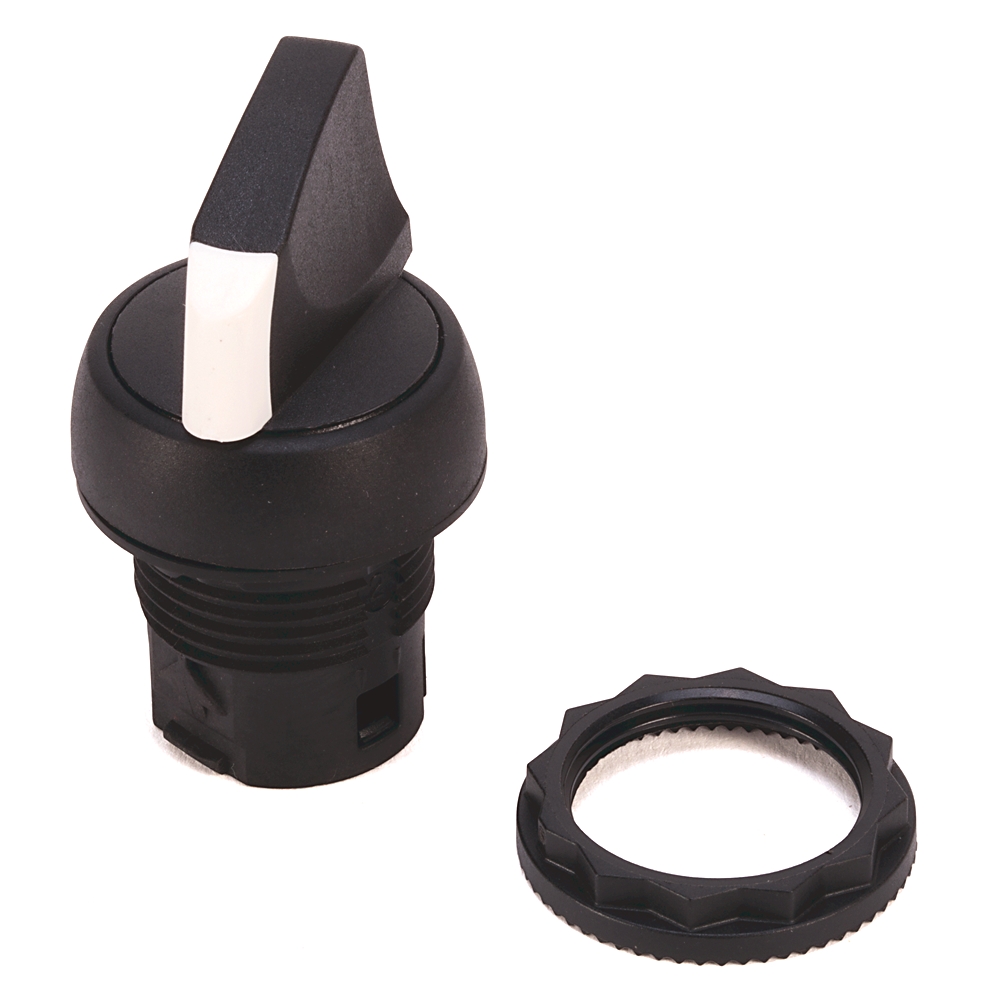

| Product Type | 22mm Selector Switch |
|---|
| Number of switch positions | 2 |
|---|---|
| Switching function latching | True |
| Material front ring | Plastic |
| Colour control element | Black |
| Operator cap color | Black |
| Operator construction/material | Plastic |
| Operator cap/button material | Plastic |
| Latch material | Plastic |
| With front ring | True |
| Type of control element | Short thumb-grip |
| Suitable for illumination | False |
|---|
| Spring-return | False |
|---|---|
| Switch orientation | Standard |
| Packaging | Standard pack (1 per package) |
| Operator type | Selector switch - standard knob |
| Operator function | Maintained, 2 position |
| Enclosure compatibility | IP66, Type 4/4X/13 (round plastic operator) |
| Hole diameter | 22.5 mm |
| Vibration | 10 g |
| Shock | 100 g |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Hazardous location rating | False |
|---|---|
| Operating temperature | -25 °C |
| Storage temperature | -40 °C |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Certifications | UL,UR, CSA, CCC, CE |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | true |
| Quick Turnaround | false |
| Dimension Height | 3.099 |
| Lead Time | 5 |
| Dimension Width | 5.004 |
| Dimension Length | 6.807 |
| Stock Status | NON_STOCKED |
| Weight | 20.408 |
| Weight Unit | G |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
