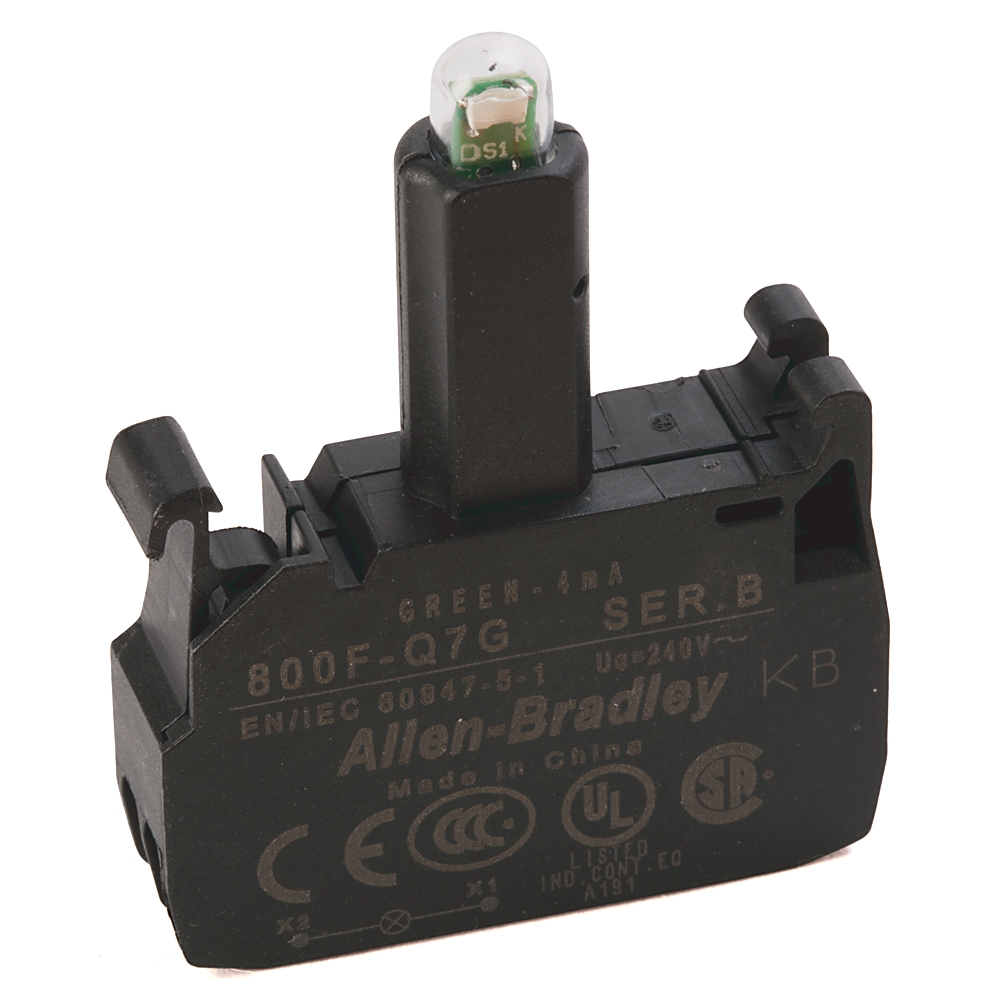

| Product Type | 22mm LED Module |
|---|
| Voltage type for actuating | AC |
|---|---|
| Lamp type | LED |
| Illumination lamp type | Green LED |
| Illumination module type | Spring clA LED |
| Illumination module input voltage | 240V AC (LED) |
| Contact block mounting style | Latch |
|---|
| Operator type | 22 mm LED module |
|---|---|
| Illumination module termination wire range | #18...14 AWG (0.75...1.5 mm²) |
| Vibration | 10 g |
| Shock | 100 g |
| Operator mounting hole dimension | 22.5 mm |
| Latch material | Plastic / metal |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operating temperature | -25 °C |
|---|---|
| Storage temperature | -40 °C |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Certifications | UL,UR, CSA, CCC, CE |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 0.406 |
| Lead Time | 5 |
| Dimension Width | 0.787 |
| Dimension Length | 1.092 |
| Stock Status | STOCKED |
| Weight | 9.639 |
| Weight Unit | G |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
