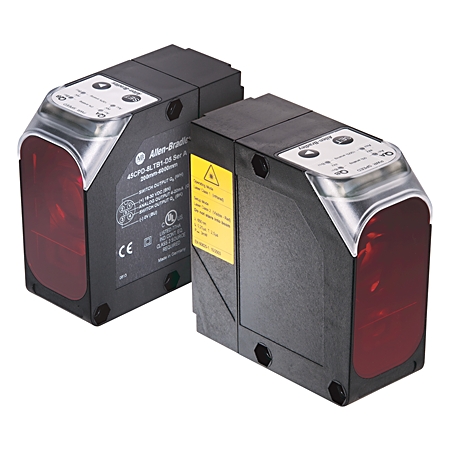

Long Range Laser Sensor
Catalog #: 45CPD-8LTB1-D5
Rockwell Automation announces that as of
July 01, 2020,
the Long Range Laser Sensor will be discontinued and no longer available for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
July 01, 2020
Replacement Category:
Functional Replacement
替换产品:
45DMS-B8LGT1-D5
[https://www.rockwellautomation.com.cn/products/details.45DMS-B8LGT1-D5.html]
Rockwell Automation announces that as of
July 01, 2020,
the Long Range Laser Sensor will be discontinued and no longer available for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
July 01, 2020
Replacement Category:
Functional Replacement
替换产品:
45DMS-B8LGT1-D5
[https://www.rockwellautomation.com.cn/products/details.45DMS-B8LGT1-D5.html]
| Agency Approvals | UL Certified,CE,CULUS,UL |
|---|---|
| Light Source | Laser |
| Sensing Mode | Laser Measurement |
| Sensitivity Adjustment | Teach Button |
| Suitable for safety functions | False |
|---|---|
| Wavelength of the sensor | 905 nm |
| Voltage type | DC |
| Rated control supply voltage at DC | 18 V |
| Type of electric connection | Connector M12 |
| Temperature drift | 1.2 µm/°C |
| Sensing range | 0.2 mm |
| Light source | Laser |
| Current consumption | ≤125mA @ 24V DC |
| Linearity | ±40 mm (1.57 in) |
| Output configuration | Analog 4...20 mA and 1 discrete |
| Sensing beam | Class 1 laser, IR 905 nm |
| Operating voltage/mode | DC - light or dark operate selectable |
| Output type | Two discrete PNP (L.O./D.O) analog: current 4...20 mA |
| Response time | Fast/slow: 13 ms/30 ms |
| Output rating | 100 mA maximum for discrete outputs, 500 Ω maximum impedance for analog output |
| Status indicator | Green: power, yellow: (2) QA, QB output, orange: speed mode, red:(4) teach-in indication |
| Laser protection class | Class 1 |
| Sensitivity adjustment | Not adjustable |
| Hysteresis | 30 mm (1.2 in) (fixed) |
| Alignment beam | Visible red Class 1 laser, 650 nm |
| Repeatability | Fast/slow: ±15 mm/±10 mm (±0.6 in/±0.4 in) |
| Circuitry protection | Short circuit, overload, false pulse, transient noise, reverse polarity protection |
| Width sensor | 42 mm |
|---|---|
| Height of sensor | 93 mm |
| Length of sensor | 94.39 mm |
| Operating environment | IP67 |
| Vibration | 10...55 Hz, 1.5 mm (0.06 in) Alitude, 3 planes, meets or exceeds IEC 60947-5-2 |
| Spot size | 4 x 7 mm @ 2 m (0.16 x 0.27 in @ 6.56 ft), 4 x 12 mm @ 6 m (0.16 x 0.47 in @ 19.7 ft) |
| Shock | 30 G (1.06 oz), 11 ms, meets or exceeds 60947-5-2 |
| Lens material | PMMA |
|---|---|
| Housing material | Plastic-ABS |
| Connection type | 5-pin DC micro |
| Operating temperature | -20 °C |
|---|
