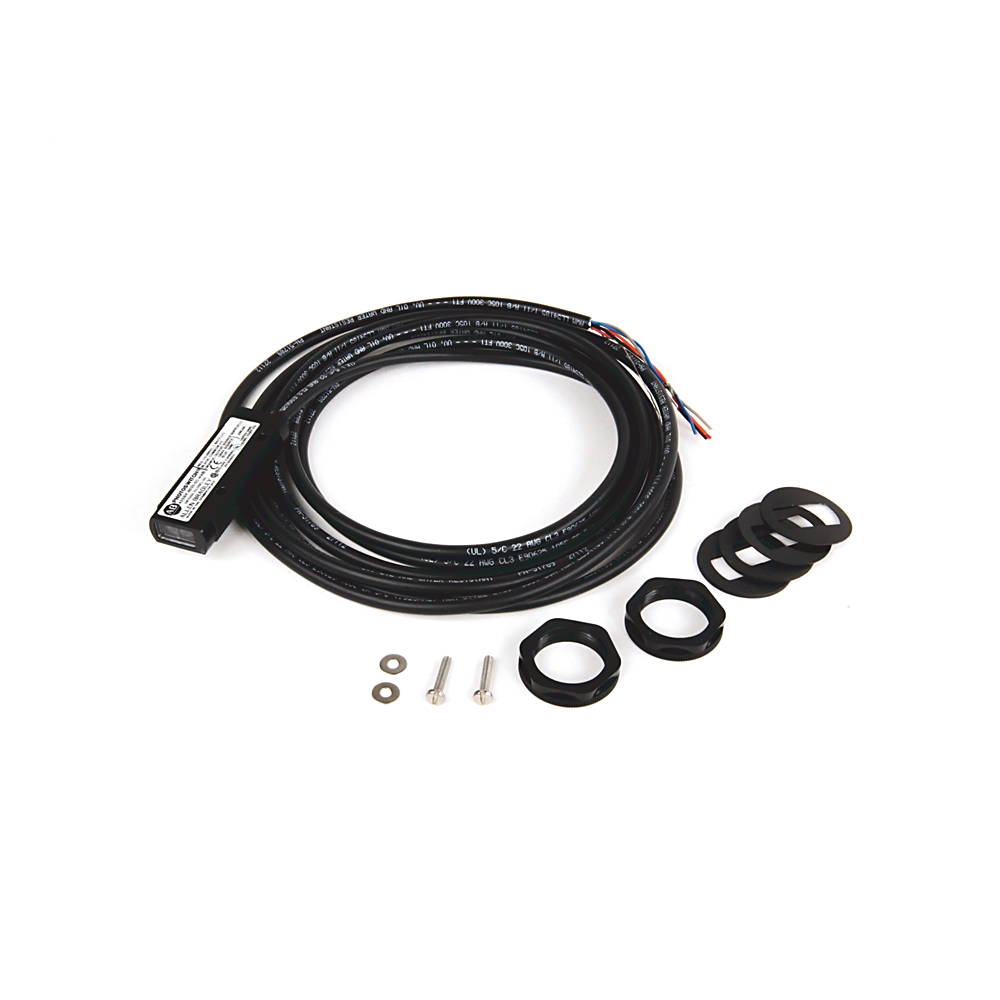

Compact Photo Sensor
Catalog #: 42srp-6012-qd
Rockwell Automation announces that as of
February 28, 2023,
the Compact Photo Sensor will be discontinued and no longer available
for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
February 28, 2023
Replacement Category:
Engineering Replacement
Rockwell Automation announces that as of
February 28, 2023,
the Compact Photo Sensor will be discontinued and no longer available for
sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
February 28, 2023
Replacement Category:
Engineering Replacement
| Degree of protection (NEMA) | 4X |
|---|---|
| Degree of protection (IP) | IP67 |
| Width sensor | 12.7 mm |
| Height of sensor | 25.4 mm |
| Length of sensor | 66 mm |
| Sensing mode type | Wide angle diffuse |
| List of degrees of protection (NEMA) | NEMA 3, 4X, 6, 12 & 13 |
| Vibration | 10...55 Hz, 1 mm Alitude, meets or exceeds IEC 60947-5-2 |
| Shock | 30 G with 1 ms pulse duration, meets or exceeds IEC 60947-5-2 |
| Setting procedure | Manual adjustment |
| Response time | 1 ms |
|---|---|
| Voltage type | DC |
| Rated control supply voltage at DC | 10 V |
| Type of switching output | PNP/NPN |
| Type of electric connection | Plug-in connection |
| Sensing mode | Light switching |
| Current consumption, max | 35 mA |
| Lens material | Acrylic |
| Light source | Infrared 880nm or visible red 650nm |
| Operating voltage/mode | 24V DC, light operate |
| Output type | Both NPN and PNP (DC), MOSFET (AC/DC) |
| Connection type | 4 pin micro QD |
| Suitable for safety functions | False |
| With time function | False |
| Pre failure notice | False |
| With reflector | False |
| Unit protection | Reverse polarity, false pulse |
| Supply voltage | 20...132V AC/DC, 20...264V AC/DC |
| LED indicators | Red: when ON (or illuminated) the sensor output is activated, when dark it is OFF |
| Material housing | Plastic |
|---|---|
| Housing material | Noryl® |
| Material of optical surface | Plastic |
| Category | Standard ON/OFF |
| Relative humidity, max | 95 % |
|---|---|
| Operating temperature | -40 °C |
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 2.997 |
| Lead Time | 72 |
| Dimension Width | 8.788 |
| Dimension Length | 16.612 |
| Stock Status | NON_STOCKED |
| Weight | 83.915 |
| Weight Unit | G |
| Dimension Unit | CM |
