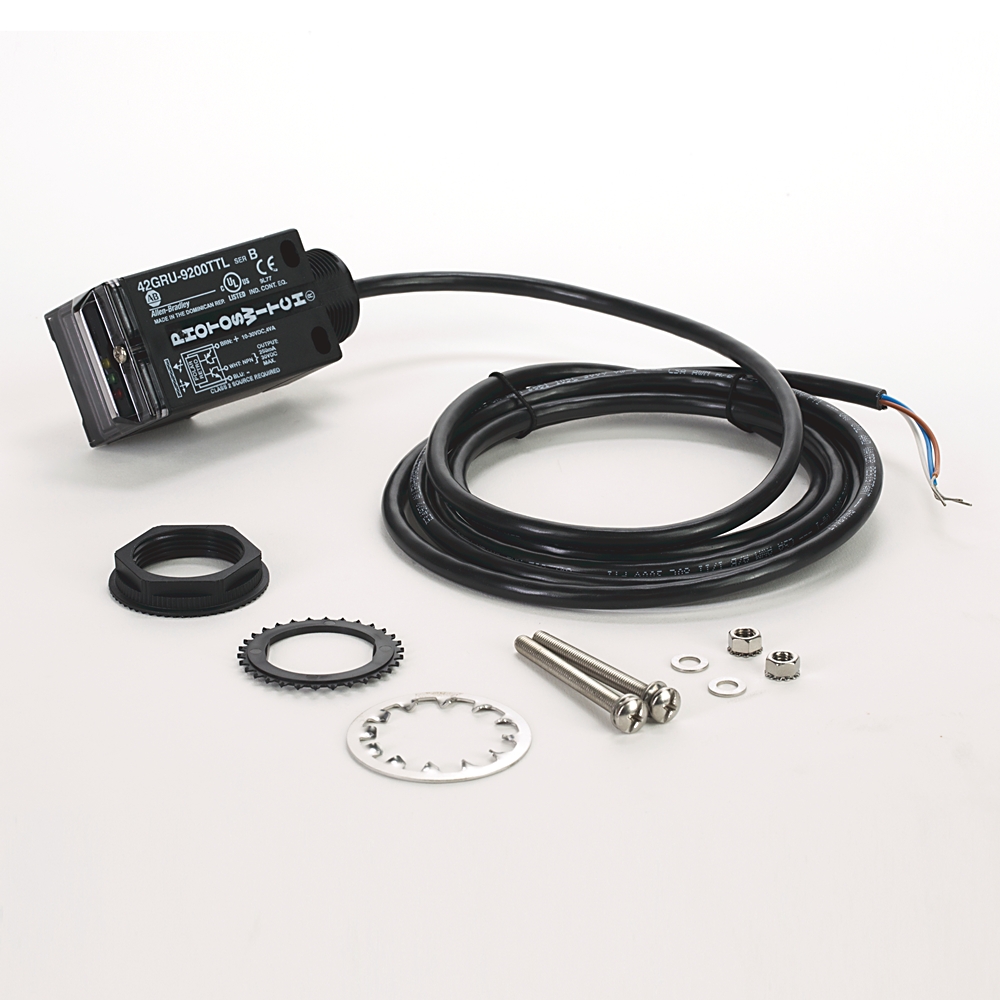

| Degree of protection (NEMA) | 13 |
|---|---|
| Degree of protection (IP) | IP67 |
| Width sensor | 41.91 mm |
| Height of sensor | 74.93 mm |
| Length of sensor | 40 mm |
| Max. switching distance | 4900 mm |
| Setting procedure | Manual adjustment |
| Sensing mode | Light-/dark switching |
| Field of view | 1.5 ° |
| Sensing distance | 50 mm |
| List of degrees of protection (NEMA) | 3, 4X, 6P, 12, 13 |
| Sensing mode type | Polarized retroreflective |
| List of degrees of protection (IP) | IP69K, IP67 |
| Vibration | 10...55 Hz, 1 mm Alitude, meets or exceeds IEC 60947-5-2 |
| Shock | 30 G with 1 ms pulse duration, meets or exceeds IEC 60947-5-2 |
| Operating environment | IP69K, IP67 with 1200 psi, NEMA 3, 4X, 6P, 12, 13, ECOLAB rated |
| With time function | False |
|---|---|
| With reflector | False |
| Wavelength of the sensor | 660 nm |
| Response time | 2 ms |
| Voltage type | DC |
| Type of switching output | PNP/NPN |
| Type of electric connection | Cable |
| Type of light | Infrared light |
| Current consumption, max | 30 mA |
| Sensor types | Standard ON/OFF |
| Lens material | Acrylic |
| Load current | 250mA @ 30V DC |
| Connection type | 2 m, 300V cable |
| Operating voltage/mode | DC - NPN and PNP |
| Protection type | Short circuit, reverse polarity, false pulse, overload |
| LED status | Yellow ON: power is ON |
| Suitable for safety functions | False |
| Pre failure notice | False |
| Material housing | Plastic |
|---|---|
| Construction type housing | Special construction |
| Housing material | Valox® |
| Material of optical surface | Plastic |
| Operating temperature | -34 °C |
|---|---|
| Relative humidity | 5 to 95 % |
| Ambient light immunity | Incandescent light 5000 lux |
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Product Drawing | Drawing (DWG) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
| Product Drawing Drawing (DWG) |
| 类型 | 资源 | 发布 |
|---|---|---|
| General | Product Cutsheet | -- |
