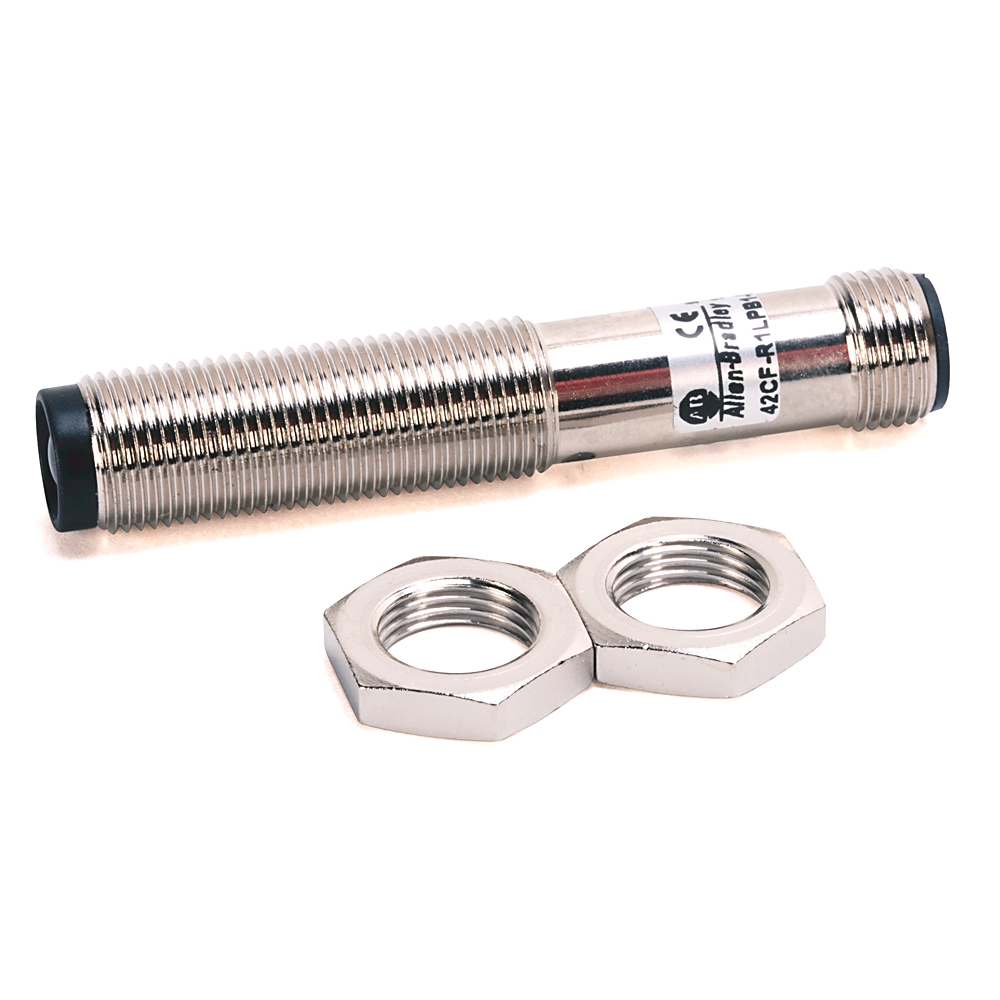

| Light Source |
Infrared
|
|---|---|
| Minimum Sensing Distance |
100
|
| Sensing Mode |
Standard Diffuse
|
| Sensitivity Adjustment |
Teach Button
|
| Wavelength of the sensor |
880 nm
|
|---|---|
| Max. output current |
100 mA
|
| Response time |
1.25 ms
|
| Voltage type |
DC
|
| Rated control supply voltage at DC |
10 V
|
| Type of switching output |
PNP
|
| Type of electric connection |
Connector M12
|
| Type of light |
Infrared light
|
| Sensing mode |
Light-/dark switching
|
| Current consumption, max |
30 mA
|
| Leakage current, max |
0.1 µa
|
| Lens material |
Acrylic
|
| Operating voltage/mode |
DC - light or dark operate selectable
|
| Connection type |
4 pin DC micro (M12) quick disconnect
|
| Protection type |
False pulse, reverse polarity, short circuit
|
| LED status |
Orange ON: sensor output is activated
|
| Number of protected semiconductor outputs |
1
|
| Suitable for safety functions |
No
|
| With time function |
No
|
| Pre failure notice |
No
|
| With communication interface analogue |
No
|
| With communication interface AS-Interface |
No
|
| With communication interface CANOpen |
No
|
| With communication interface DeviceNet |
No
|
| With communication interface Ethernet |
No
|
| With communication interface INTERBUS |
No
|
| With communication interface PROFIBUS |
No
|
| With communication interface RS-232 |
No
|
| With communication interface RS-422 |
No
|
| With communication interface RS-485 |
No
|
| With communication interface SSD |
No
|
| With communication interface SSI |
No
|
| Degree of protection (IP) |
IP67
|
|---|---|
| Diameter sensor |
12 mm
|
| Max. switching distance |
100 mm
|
| Length of sensor |
66 mm
|
| Spot size |
11.4° @ 100 mm
|
| Sensing mode type |
Standard diffuse
|
| Vibration |
10...55 Hz, 1 mm Alitude, meets or exceeds IEC 600947-5-2
|
| Shock |
30 G with 1 ms pulse duration, meets or exceeds IEC 600947-5-2
|
| Setting procedure |
Manual adjustment
|
| Material housing |
Metal
|
|---|---|
| Construction type housing |
Cylinder, screw-thread
|
| Housing material |
Nickel plated Brass
|
| Material of optical surface |
Plastic
|
| Field of view |
11.4 °
|
|---|---|
| Operating temperature |
-25 °C
|
| Relative humidity |
5...95% (noncondensing)
|
| Ambient light immunity |
Incandescent light 3000 lux
|
技术规格
| Light Source |
Infrared
|
|---|---|
| Minimum Sensing Distance |
100
|
| Sensing Mode |
Standard Diffuse
|
| Sensitivity Adjustment |
Teach Button
|
| Wavelength of the sensor |
880 nm
|
|---|---|
| Max. output current |
100 mA
|
| Response time |
1.25 ms
|
| Voltage type |
DC
|
| Rated control supply voltage at DC |
10 V
|
| Type of switching output |
PNP
|
| Type of electric connection |
Connector M12
|
| Type of light |
Infrared light
|
| Sensing mode |
Light-/dark switching
|
| Current consumption, max |
30 mA
|
| Leakage current, max |
0.1 µa
|
| Lens material |
Acrylic
|
| Operating voltage/mode |
DC - light or dark operate selectable
|
| Connection type |
4 pin DC micro (M12) quick disconnect
|
| Protection type |
False pulse, reverse polarity, short circuit
|
| LED status |
Orange ON: sensor output is activated
|
| Number of protected semiconductor outputs |
1
|
| Suitable for safety functions |
No
|
| With time function |
No
|
| Pre failure notice |
No
|
| With communication interface analogue |
No
|
| With communication interface AS-Interface |
No
|
| With communication interface CANOpen |
No
|
| With communication interface DeviceNet |
No
|
| With communication interface Ethernet |
No
|
| With communication interface INTERBUS |
No
|
| With communication interface PROFIBUS |
No
|
| With communication interface RS-232 |
No
|
| With communication interface RS-422 |
No
|
| With communication interface RS-485 |
No
|
| With communication interface SSD |
No
|
| With communication interface SSI |
No
|
| Degree of protection (IP) |
IP67
|
|---|---|
| Diameter sensor |
12 mm
|
| Max. switching distance |
100 mm
|
| Length of sensor |
66 mm
|
| Spot size |
11.4° @ 100 mm
|
| Sensing mode type |
Standard diffuse
|
| Vibration |
10...55 Hz, 1 mm Alitude, meets or exceeds IEC 600947-5-2
|
| Shock |
30 G with 1 ms pulse duration, meets or exceeds IEC 600947-5-2
|
| Setting procedure |
Manual adjustment
|
| Material housing |
Metal
|
|---|---|
| Construction type housing |
Cylinder, screw-thread
|
| Housing material |
Nickel plated Brass
|
| Material of optical surface |
Plastic
|
| Field of view |
11.4 °
|
|---|---|
| Operating temperature |
-25 °C
|
| Relative humidity |
5...95% (noncondensing)
|
| Ambient light immunity |
Incandescent light 3000 lux
|
图纸
文档
|
Product Cutsheet
基本信息
-- |
|
42cf-in001_-en-p
安装说明
42CF-IN001 |
|
pe-td001_-en-p
技术数据
PE-TD001 |
| 基本信息 | 出版 |
|---|---|
| Product Cutsheet | -- |
| 安装说明 | 出版 |
| 42cf-in001_-en-p | 42CF-IN001 |
| 技术数据 | 出版 |
| pe-td001_-en-p | PE-TD001 |
