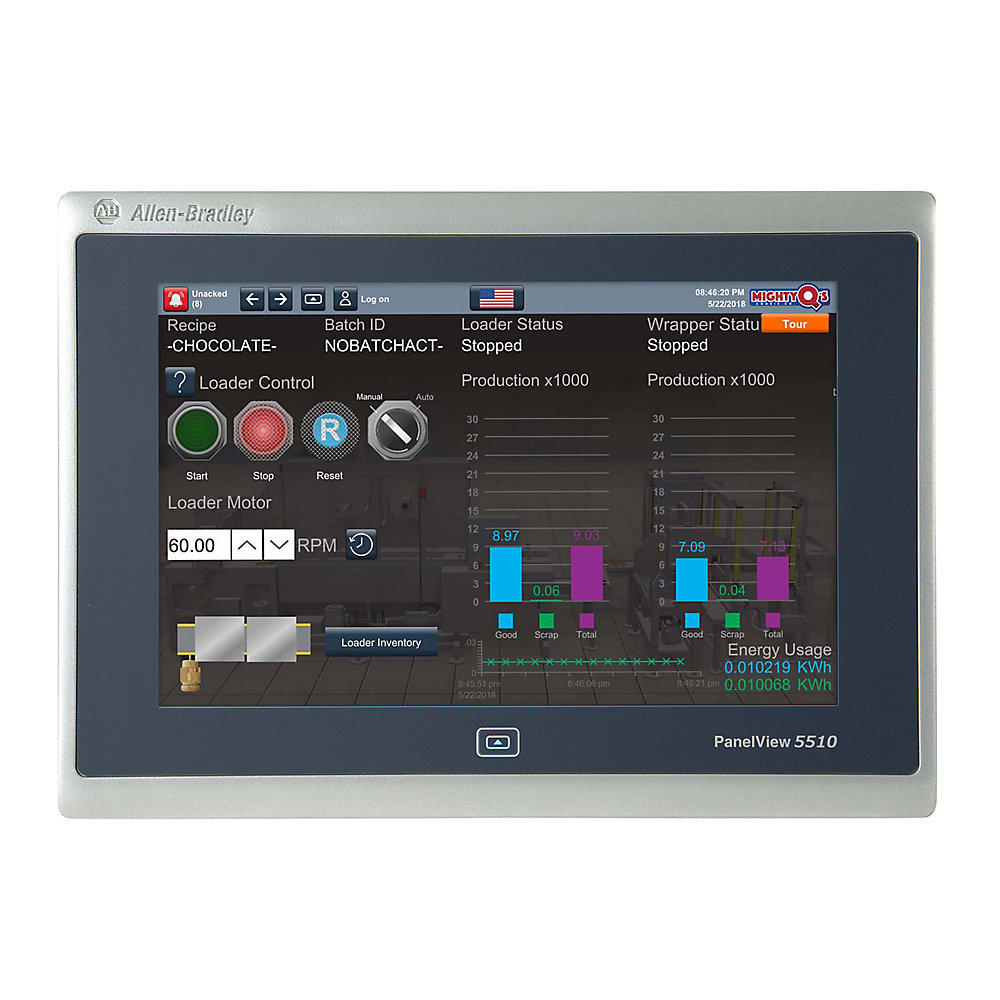

| Number of HW-interfaces industrial Ethernet |
2
|
|---|---|
| Number of HW-interfaces RS-232 |
0
|
| Number of HW-interfaces RS-422 |
0
|
| Number of HW-interfaces RS-485 |
0
|
| Number of grey-scales/blue-scales of display |
0
|
| Number of system buttons |
1
|
| Voltage type of supply voltage |
DC
|
| Number of function buttons, programmable |
0
|
| Suitable for safety functions |
No
|
| Supporting protocol for TCP/IP |
Yes
|
| Supporting protocol for Modbus |
No
|
| Supporting protocol for Data-Highway |
No
|
| With colour display |
Yes
|
| With numeric keyboard |
No
|
| With alpha numeric keyboard |
No
|
| With message indication |
Yes
|
| With message system (incl. buffer and confirmation) |
No
|
| Process value representation (output) possible |
Yes
|
| Process default value (input) possible |
No
|
| With recipes |
No
|
| With printer output |
No
|
| Supporting protocol for EtherNet/IP |
Yes
|
| Screen diagonal |
7 in
|
| Supply voltage DC |
18 V
|
| Touch technology |
Resistive touch
|
| Power consumption, max |
22 W
|
| Power consumption, typical |
17 W
|
| With Allen-Bradley brand marking |
Yes
|
| Backlight power consumption, typical |
3 W
|
| Aspect ratio |
5:3
|
| Display resolution |
800 x 480 WVGA
|
| USB host port |
0.5A @ 5V DC (Type A)
|
| Status indicator |
STS (status, green), ERR (error, red)
|
| Operator input |
Touch plus menu navigation button
|
| Input voltage, nom |
24V DC (18...30V DC)
|
| Memory |
RAM: 1 GB RAM, User available: 1 GB nonvolatile storage for projects
|
| Power supply |
Supports SELV and PELV 24V DC supplies
|
| Touch screen |
Analog resistive, Actuation rating: 1 mon presses, Operating force: <100 g
|
| Backlight |
Type: light-emitting diode, non-replaceable, Life: 50000 hr minimum at 40 °C (104 °F) to half-brightness
|
| Ethernet ports |
Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support (Device Level Ring) DLR, linear, or star network topologies.
|
| Software |
Studio 5000 environment provides single portal to View Designer and Logix Designer applications
|
| Secure Digital (SD) card slot |
One SD card slot for external storage, Supports cat. no. 1784-SDx cards
|
| USB ports |
Host: two USB 2.0 high-speed (type A) host port to support removable USB drives for external storage, Device: one USB 2.0 high-speed (type B) device port to connect to a host computer that is software-feature dependent.
|
| Number of HW-interfaces serial TTY |
0
|
| Number of HW-interfaces parallel |
0
|
| Number of HW-interfaces other |
0
|
| Number of interfaces PROFINET |
0
|
| Number of HW-interfaces Wireless |
0
|
| Number of buttons with LED |
0
|
| Supporting protocol for LON |
No
|
| Supporting protocol for ASI |
No
|
| Supporting protocol for PROFIBUS |
No
|
| Supporting protocol for CAN |
No
|
| Supporting protocol for INTERBUS |
No
|
| Supporting protocol for KNX |
No
|
| Supporting protocol for DeviceNet |
No
|
| Supporting protocol for SUCONET |
No
|
| Supporting protocol for other bus systems |
No
|
| Supporting protocol for SERCOS |
No
|
| Supporting protocol for INTERBUS-Safety |
No
|
| Radio standard Bluetooth |
No
|
| Radio standard Wi-Fi 802.11 |
No
|
| IO link master |
No
|
| Supporting protocol for AS-Interface Safety at Work |
No
|
| Supporting protocol for DeviceNet Safety |
No
|
| Supporting protocol for Foundation Fieldbus |
No
|
| Supporting protocol for PROFINET CBA |
No
|
| Supporting protocol for PROFINET IO |
No
|
| Supporting protocol for PROFIsafe |
No
|
| Supporting protocol for SafetyBUS p |
No
|
| Radio standard GPRS |
No
|
| Radio standard GSM |
No
|
| Radio standard UMTS |
No
|
| With SW interfaces |
Yes
|
| Type of display |
TFT
|
| Inrush current, typical |
7 A
|
| Brightness, typical |
300 cdb/m²
|
| Color depth |
24-bit color graphics (16.7 mon colors)
|
| Battery (real-time clock backup) |
Accuracy: ±2 min per month, Battery life: 4 yr minimum at 25 °C (77 °F), Replacement: CR2032 lithium coin cell (Allen-Bradley part number 2711P-RY2032)
|
| Degree of protection (NEMA), front side |
4X
|
|---|---|
| Degree of protection (IP), front side |
IP66
|
| Operating temperature |
0 °C
|
| Conformal coated |
Yes
|
| Power dissipation |
41 btu/hr
|
| List of degrees of protection (NEMA) |
4X, 12, 13
|
| Shock |
Operating: 15 G @ 11 ms, Nonoperating: 30 G @ 11 ms
|
| Vibration |
0.012 peak-peak, 10...57 Hz, 2 G peak at 57...500 Hz
|
| Relative humidity |
5...95% noncondensing
|
| Altitude, operating |
2000 m
|
| Nonoperating temperature |
-25 °C
|
| Width of the front |
237 mm
|
|---|---|
| Height of the front |
178 mm
|
| Wall mounting/direct mounting |
Yes
|
| Mounted depth |
64 mm
|
| Cutout dimensions, approx |
Height: 148 mm (5.82 in), Width: 207 mm (8.15 in)
|
| Rail mounting possible |
No
|
| Overall depth |
69.5 mm
|
| Weight, approx |
2 g
|
|---|---|
| View area |
Width: 152 mm (6.0 in), Height: 91 mm (3.6 in)
|
| 图纸 | |
|---|---|
| 2-Dimensional Drawing (PDF) | 下载 (PDF) |
| 3D STP Model (STEP) | 下载 (ZIP) |
| Product Drawing | Drawing (DXF) |
| 图纸 |
|---|
| 2-Dimensional Drawing (PDF) 下载 (PDF) |
| 3D STP Model (STEP) 下载 (ZIP) |
| Product Drawing Drawing (DXF) |
登录您的罗克韦尔自动化帐户以查看和下载技术图纸.
登录
| 类型 | 资源 | 出版 |
|---|---|---|
| 常规 | Product Information | 2715P-PC001 |
| 常规 | Technical Data | 2715P-TD001 |
| 常规 | Product Profile | 2715-PP001 |
| 常规 | Terminals Cutout Template | 2715P-DS001 |
| 常规 | Product Cutsheet | -- |
| 常规 | User Manual | 2715P-UM001 |
- UL Listed Hazardous
- Lloyds Register
- Korean Register of Shippin
This product was certified with the above certifications as of 2025-09-09. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
技术规格
| Number of HW-interfaces industrial Ethernet |
2
|
|---|---|
| Number of HW-interfaces RS-232 |
0
|
| Number of HW-interfaces RS-422 |
0
|
| Number of HW-interfaces RS-485 |
0
|
| Number of grey-scales/blue-scales of display |
0
|
| Number of system buttons |
1
|
| Voltage type of supply voltage |
DC
|
| Number of function buttons, programmable |
0
|
| Suitable for safety functions |
No
|
| Supporting protocol for TCP/IP |
Yes
|
| Supporting protocol for Modbus |
No
|
| Supporting protocol for Data-Highway |
No
|
| With colour display |
Yes
|
| With numeric keyboard |
No
|
| With alpha numeric keyboard |
No
|
| With message indication |
Yes
|
| With message system (incl. buffer and confirmation) |
No
|
| Process value representation (output) possible |
Yes
|
| Process default value (input) possible |
No
|
| With recipes |
No
|
| With printer output |
No
|
| Supporting protocol for EtherNet/IP |
Yes
|
| Screen diagonal |
7 in
|
| Supply voltage DC |
18 V
|
| Touch technology |
Resistive touch
|
| Power consumption, max |
22 W
|
| Power consumption, typical |
17 W
|
| With Allen-Bradley brand marking |
Yes
|
| Backlight power consumption, typical |
3 W
|
| Aspect ratio |
5:3
|
| Display resolution |
800 x 480 WVGA
|
| USB host port |
0.5A @ 5V DC (Type A)
|
| Status indicator |
STS (status, green), ERR (error, red)
|
| Operator input |
Touch plus menu navigation button
|
| Input voltage, nom |
24V DC (18...30V DC)
|
| Memory |
RAM: 1 GB RAM, User available: 1 GB nonvolatile storage for projects
|
| Power supply |
Supports SELV and PELV 24V DC supplies
|
| Touch screen |
Analog resistive, Actuation rating: 1 mon presses, Operating force: <100 g
|
| Backlight |
Type: light-emitting diode, non-replaceable, Life: 50000 hr minimum at 40 °C (104 °F) to half-brightness
|
| Ethernet ports |
Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support (Device Level Ring) DLR, linear, or star network topologies.
|
| Software |
Studio 5000 environment provides single portal to View Designer and Logix Designer applications
|
| Secure Digital (SD) card slot |
One SD card slot for external storage, Supports cat. no. 1784-SDx cards
|
| USB ports |
Host: two USB 2.0 high-speed (type A) host port to support removable USB drives for external storage, Device: one USB 2.0 high-speed (type B) device port to connect to a host computer that is software-feature dependent.
|
| Number of HW-interfaces serial TTY |
0
|
| Number of HW-interfaces parallel |
0
|
| Number of HW-interfaces other |
0
|
| Number of interfaces PROFINET |
0
|
| Number of HW-interfaces Wireless |
0
|
| Number of buttons with LED |
0
|
| Supporting protocol for LON |
No
|
| Supporting protocol for ASI |
No
|
| Supporting protocol for PROFIBUS |
No
|
| Supporting protocol for CAN |
No
|
| Supporting protocol for INTERBUS |
No
|
| Supporting protocol for KNX |
No
|
| Supporting protocol for DeviceNet |
No
|
| Supporting protocol for SUCONET |
No
|
| Supporting protocol for other bus systems |
No
|
| Supporting protocol for SERCOS |
No
|
| Supporting protocol for INTERBUS-Safety |
No
|
| Radio standard Bluetooth |
No
|
| Radio standard Wi-Fi 802.11 |
No
|
| IO link master |
No
|
| Supporting protocol for AS-Interface Safety at Work |
No
|
| Supporting protocol for DeviceNet Safety |
No
|
| Supporting protocol for Foundation Fieldbus |
No
|
| Supporting protocol for PROFINET CBA |
No
|
| Supporting protocol for PROFINET IO |
No
|
| Supporting protocol for PROFIsafe |
No
|
| Supporting protocol for SafetyBUS p |
No
|
| Radio standard GPRS |
No
|
| Radio standard GSM |
No
|
| Radio standard UMTS |
No
|
| With SW interfaces |
Yes
|
| Type of display |
TFT
|
| Inrush current, typical |
7 A
|
| Brightness, typical |
300 cdb/m²
|
| Color depth |
24-bit color graphics (16.7 mon colors)
|
| Battery (real-time clock backup) |
Accuracy: ±2 min per month, Battery life: 4 yr minimum at 25 °C (77 °F), Replacement: CR2032 lithium coin cell (Allen-Bradley part number 2711P-RY2032)
|
| Degree of protection (NEMA), front side |
4X
|
|---|---|
| Degree of protection (IP), front side |
IP66
|
| Operating temperature |
0 °C
|
| Conformal coated |
Yes
|
| Power dissipation |
41 btu/hr
|
| List of degrees of protection (NEMA) |
4X, 12, 13
|
| Shock |
Operating: 15 G @ 11 ms, Nonoperating: 30 G @ 11 ms
|
| Vibration |
0.012 peak-peak, 10...57 Hz, 2 G peak at 57...500 Hz
|
| Relative humidity |
5...95% noncondensing
|
| Altitude, operating |
2000 m
|
| Nonoperating temperature |
-25 °C
|
| Width of the front |
237 mm
|
|---|---|
| Height of the front |
178 mm
|
| Wall mounting/direct mounting |
Yes
|
| Mounted depth |
64 mm
|
| Cutout dimensions, approx |
Height: 148 mm (5.82 in), Width: 207 mm (8.15 in)
|
| Rail mounting possible |
No
|
| Overall depth |
69.5 mm
|
| Weight, approx |
2 g
|
|---|---|
| View area |
Width: 152 mm (6.0 in), Height: 91 mm (3.6 in)
|
图纸
| 图纸 | |
|---|---|
| 2-Dimensional Drawing (PDF) | 下载 (PDF) |
| 3D STP Model (STEP) | 下载 (ZIP) |
| Product Drawing | Drawing (DXF) |
| 图纸 |
|---|
| 2-Dimensional Drawing (PDF) 下载 (PDF) |
| 3D STP Model (STEP) 下载 (ZIP) |
| Product Drawing Drawing (DXF) |
登录您的罗克韦尔自动化帐户以查看和下载技术图纸.
登录
文档
|
Product Information
常规
2715P-PC001 |
|
Technical Data
常规
2715P-TD001 |
|
Product Profile
常规
2715-PP001 |
|
Terminals Cutout Template
常规
2715P-DS001 |
|
Product Cutsheet
常规
-- |
|
User Manual
常规
2715P-UM001 |
| 类型 | 资源 | 出版 |
|---|---|---|
| 常规 | Product Information | 2715P-PC001 |
| 常规 | Technical Data | 2715P-TD001 |
| 常规 | Product Profile | 2715-PP001 |
| 常规 | Terminals Cutout Template | 2715P-DS001 |
| 常规 | Product Cutsheet | -- |
| 常规 | User Manual | 2715P-UM001 |
