20AD3P4A0AYNNNC0

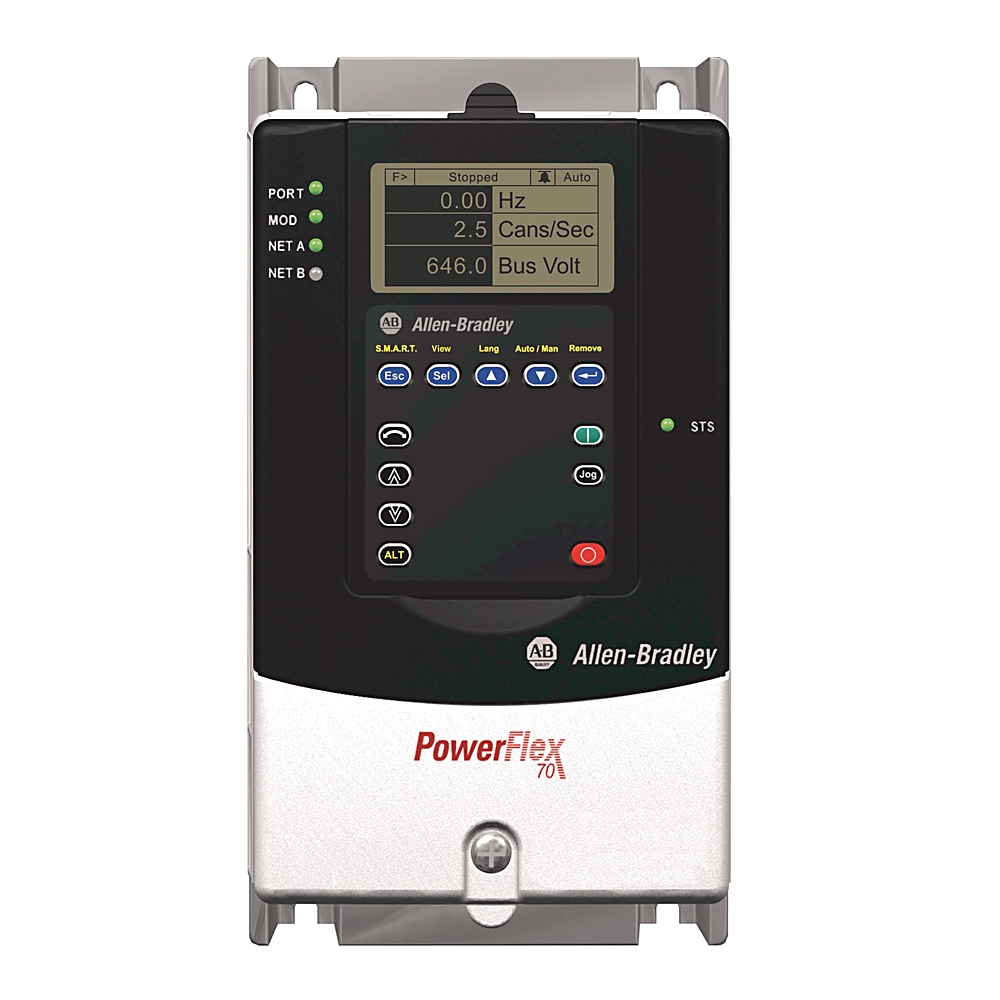

PowerFlex 70 AC Drive 3.4 A at 2 Hp 20A
Rockwell Automation announces that as of May 30, 2027, the PowerFlex 70 AC Drive 3.4 A at 2 Hp 20A will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
停产日期:
May 30, 2027
替代类别:
Engineering Replacement
产品概览
Rockwell Automation announces that as of May 30, 2027, the PowerFlex 70 AC Drive 3.4 A at 2 Hp 20A will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
停产日期:
May 30, 2027
替代类别:
Engineering Replacement
产品概览
| Brake Resistor |
No Internal
|
|---|---|
| Control And I/O |
Enhanced Control with 24V I/O
|
| Feedback Options |
No ftdback
|
| Filter Options |
W/O EMC Filt & ComModeChoke
|
| Internal Communication Module |
No Communication Module
|
| Sub Brand |
PowerFlex 70 AC Drive
|
| Degree of protection (IP) |
IP20
|
|---|---|
| Shock |
15 G peak for 11 ms duration (±1.0 ms)
|
| Vibration |
0.152 mm (0.006 in) displacement, 1 G peak
|
| Number of analogue outputs |
1
|
|---|---|
| Mains voltage |
480 V
|
| Integrated breaking resistance |
No
|
| Internal dynamic brake resistors |
115 ohm
|
| Number of digital inputs |
6
|
| Number of digital outputs |
2
|
| Number of analogue inputs |
2
|
| Supporting protocol for DeviceNet |
Yes
|
| Application in industrial area permitted |
Yes
|
| Supporting protocol for EtherNet/IP |
Yes
|
| Mains frequency |
50 Hz
|
| Efficiency |
97.5% at rated A, nominal line volts
|
| Number of HW-interfaces RS-232 |
2
|
| Number of HW-interfaces RS-485 |
2
|
| Number of HW-interfaces USB |
2
|
| Number of phases output |
3
|
| Number of phases input |
3
|
| Relative symmetric net voltage tolerance |
10 %
|
| With control element |
Yes
|
| Supporting protocol for TCP/IP |
Yes
|
| Supporting protocol for PROFIBUS |
Yes
|
| Supporting protocol for CAN |
Yes
|
| Supporting protocol for Modbus |
Yes
|
| Application in domestic- and commercial area permitted |
Yes
|
| Input frequency tolerance |
47 Hz
|
| Voltage tolerance |
-10 %
|
| Altitude |
1000 m (3300 ft.) maximum without derating
|
|---|---|
| Degree of protection (NEMA) |
1
|
| Storage temperature |
-40 °C
|
| Relative humidity |
5...95% noncondensing
|
| 图纸 | |
|---|---|
| 3D STEP (STP) Model | 下载 (ZIP) |
| Dimension Drawing (Catalog Pages) | 下载 (PDF) |
| Control Terminal Block Drawing | 下载 (PDF) |
| 2D Dimension Drawing (PDF) | 下载 (PDF) |
| 2D Dimension Drawing (DWG/DXF) | 下载 (ZIP) |
| PowerTerminal Block Drawing | 下载 (PDF) |
| 图纸 |
|---|
| 3D STEP (STP) Model 下载 (ZIP) |
| Dimension Drawing (Catalog Pages) 下载 (PDF) |
| Control Terminal Block Drawing 下载 (PDF) |
| 2D Dimension Drawing (PDF) 下载 (PDF) |
| 2D Dimension Drawing (DWG/DXF) 下载 (ZIP) |
| PowerTerminal Block Drawing 下载 (PDF) |
登录您的罗克韦尔自动化帐户以查看和下载技术图纸.
登录
| 参考手册 | 出版 |
|---|---|
| REFERENCE_MANUAL_pflex-rm004_-en-e | PFLEX-RM004 |
| 安装说明 | 出版 |
|---|---|
| INSTALLATION_INSTRUCTIONS_20a-in002_-mu-p | 20A-IN002 |
| 应用技巧 | 出版 |
|---|---|
| APPLICATION_TECHNIQUES_pflex-at001_-en-p | PFLEX-AT001 |
| 快速参考 | 出版 |
|---|---|
| QUICK_REFERENCE_20him-qr001_-mu-p | 20HIM-QR001 |
| 技术数据 | 出版 |
|---|---|
| 20a-td001_-en-p | 20A-TD001 |
| 接线图 | 出版 |
|---|---|
| WIRING_DIAGRAM_21vw-wd002_-en-p | 21VW-WD002 |
| 用户手册 | 出版 |
|---|---|
| USER_MANUAL_20a-um001_-en-p | 20A-UM001 |
