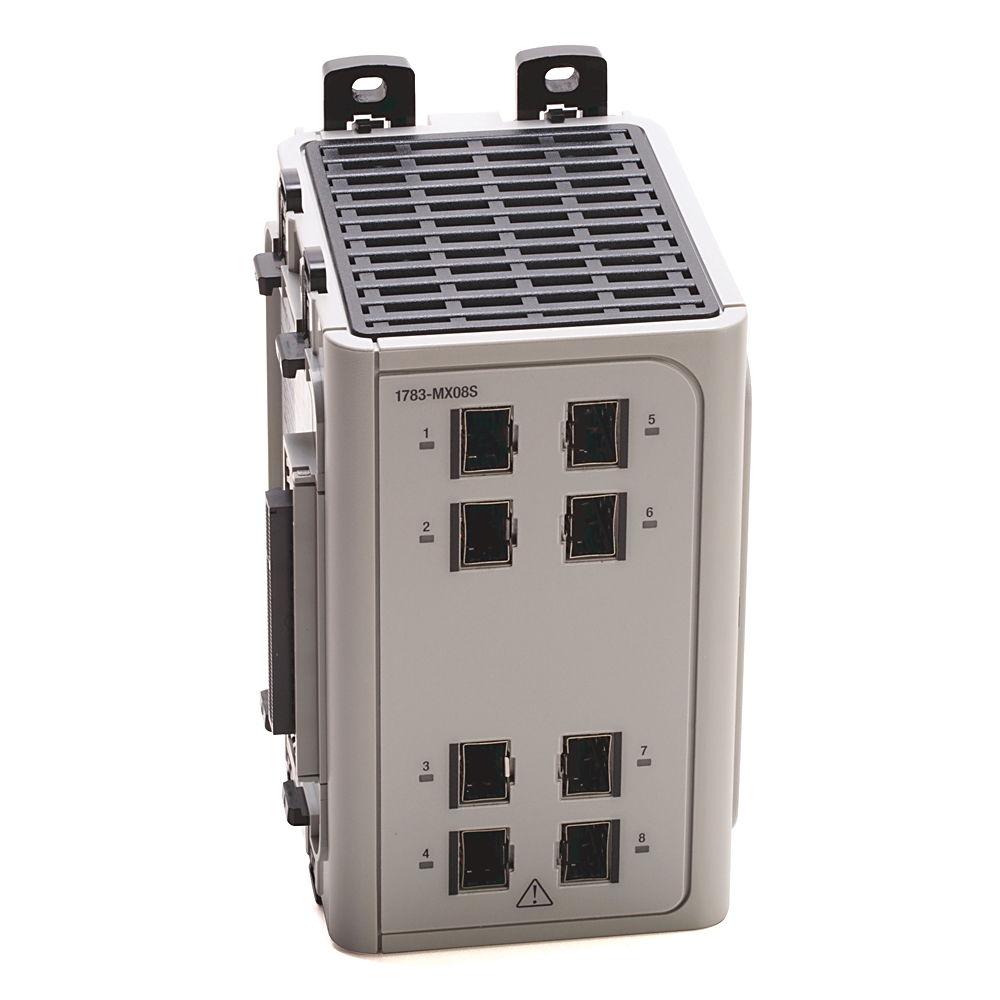

Stratix 8000 8 Port SFP Exp. Module
Catalog #: 1783-MX08S
Rockwell Automation announces that as of
November 30, 2020,
the Stratix 8000 8 Port SFP Exp. Module will be discontinued and no longer available
for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
November 30, 2020
Replacement Category:
Functional Replacement
Rockwell Automation announces that as of
November 30, 2020,
the Stratix 8000 8 Port SFP Exp. Module will be discontinued and no longer available for
sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
November 30, 2020
Replacement Category:
Functional Replacement
| CIP Sync (IEEE 1588) | False |
|---|---|
| Combo ports | None |
| Conformal Coating | False |
| NAT | False |
| Port | 8 |
| SFP slots | 8 FE |
| Ethernet | False |
|---|---|
| Fast Ethernet | True |
| Gigabit Ethernet | False |
| Power consumption, maximum | 12.2 W |
| Power dissipation | 12.2 W |
| Backplane power, maximum | 3.3V DC @ 4.0A |
| Number of 100 FX fiber-optic SFP slots | 8 |
| 10 Gigabit Ethernet | False |
| ESD immunity, IEC 61000-4-2, air discharges | 8 kV |
|---|---|
| ESD immunity, IEC 61000-4-2, contact discharges | 6 kV |
| Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 15 g |
| Housing base material | Open-style |
| Nominal position | T4 |
| Selectable start times | T4 |
| Temperature, surrounding air, maximum | 60 °C |
| Emissions, CISPR11 (IEC 61000-6-4) | Group 1, class A |
| Magnetic field immunity, IEC 61000-4-8, long duration at 50 Hz (A/m) | 30 |
| Magnetic field immunity, IEC 61000-4-8, short duration at 50 Hz (A/m) | 300 |
| Magnetic pulse immunity, IEC 61000-4-9 (A/m) | 300 |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 - 2700 MHz | 3 kg/km |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 2000 MHz | 10 kg/km |
| Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz | 10 kg/km |
| Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz | 10 kg/km |
| Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing | 5 % |
| Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 30 g |
| Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold) | -40 °C |
| Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock) | -40 °C |
| Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat) | -40 °C |
| Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold) | -40 °C |
| Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock) | -40 °C |
| Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat) | -40 °C |
| Vibration, IEC 60068-2-6 (test Fc, operating) at 10 - 500 Hz | 2 g |
| Width | 9.81 cm |
|---|---|
| Height | 14.8 cm |
| Depth | 11.75 cm |
