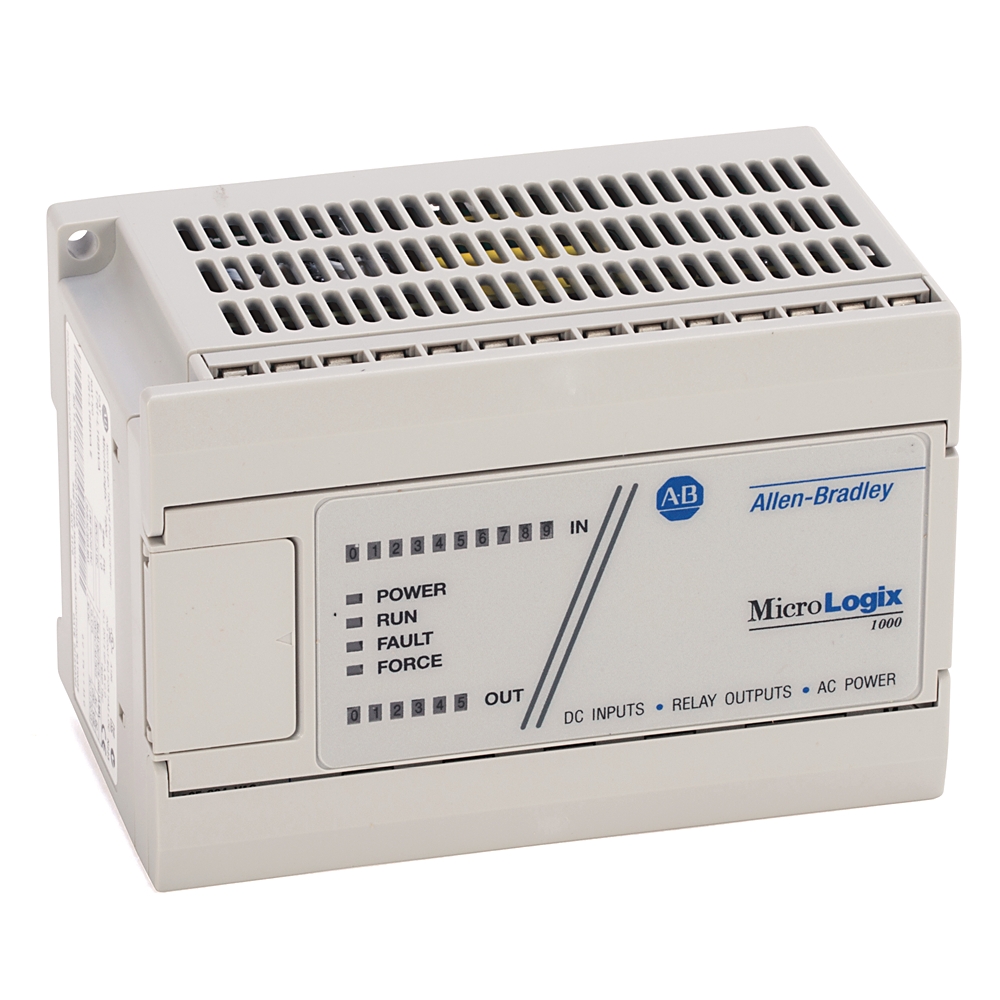

MicroLogix 1000 16 Point Controller
Catalog #: 1761-l16bbb
Rockwell Automation announces that as of
April 07, 2017,
the MicroLogix 1000 16 Point Controller will be discontinued and no longer available
for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
April 07, 2017
Replacement Category:
Engineering Replacement
Rockwell Automation announces that as of
April 07, 2017,
the MicroLogix 1000 16 Point Controller will be discontinued and no longer available for
sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
April 07, 2017
Replacement Category:
Engineering Replacement
| Class | Controller |
|---|---|
| Communication | DF1 |
| Controller | MicroLogix 1000, 24V dc power, (10) 24V dc digital inputs, (4) MOSFET sourcing outputs, (2) relay outputs |
| Depth | 40 |
| Height | 80 |
| Input Signal | 24V DC |
| Interface | RS-232 |
| Memory | 1KB |
| Number Of Channels | 10 I/P, 6 O/P |
| Output | 2 relay - 4x24V DC source |
| Output Signal | (2) Relay and (4) Sourcing MOSFET |
| Power Supply | 24V DC |
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 5.41 |
| Lead Time | 9 |
| Dimension Width | 10.109 |
| Dimension Length | 15.697 |
| Stock Status | NON_STOCKED |
| Weight | 0.272 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| Product Drawing | Drawing (DWG) |
| Drawings |
|---|
| Product Drawing Drawing (DWG) |
