1756-ib16

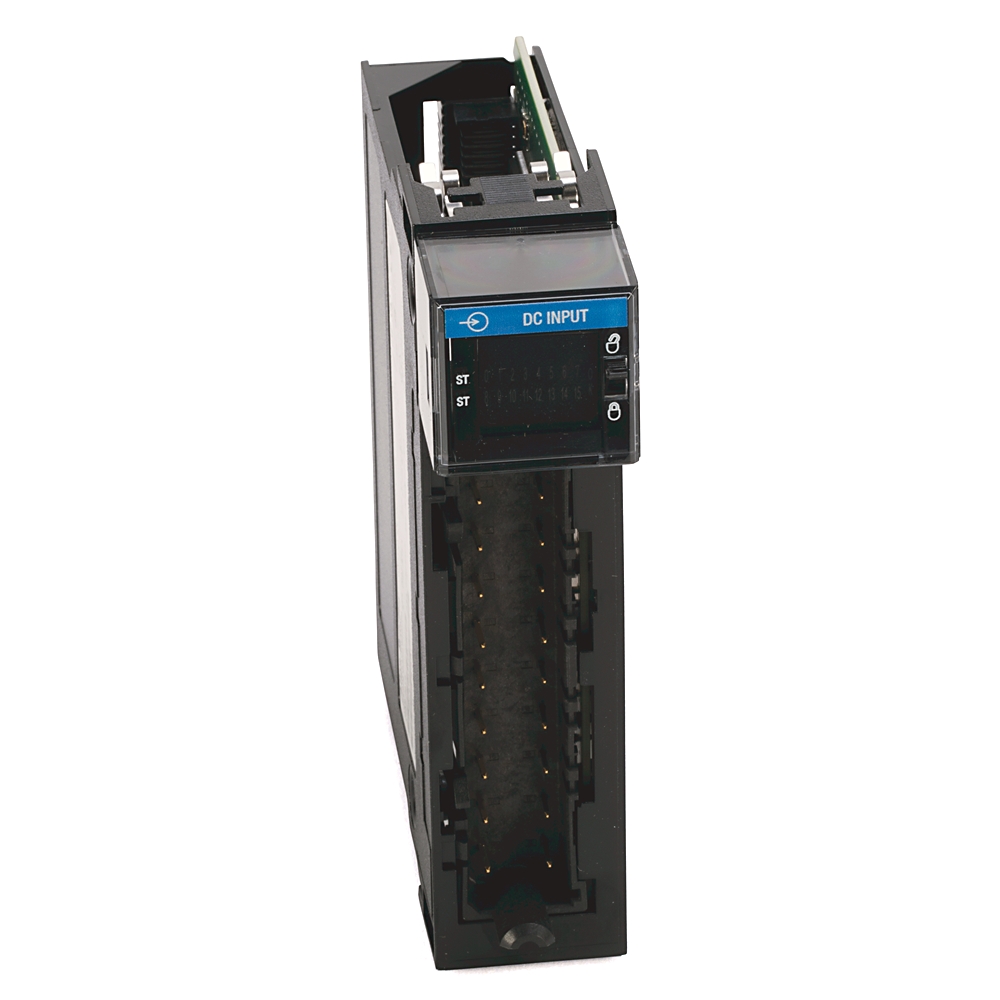

ControlLogix 16 Pt 12/24V DC D/I Module
Product at a glance
Build America, Buy America
Product at a glance
Build America, Buy America
| Input Signal | 10-31V DC |
|---|---|
| Isolation | 250V (continuous), basic insulation type, inputs-to-backplane, and input group-to-group. No isolation between individual group inputs |
| Number Of Channels | 16 |
| Output Signal | N/A |
| Drawings | |
|---|---|
| 3-Dimensional STEP model (STP) | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Product Drawing | Drawing (DWG) |
| Drawings |
|---|
| 3-Dimensional STEP model (STP) Download (ZIP) |
| Product Drawing Drawing (DXF) |
| Product Drawing Drawing (DWG) |
