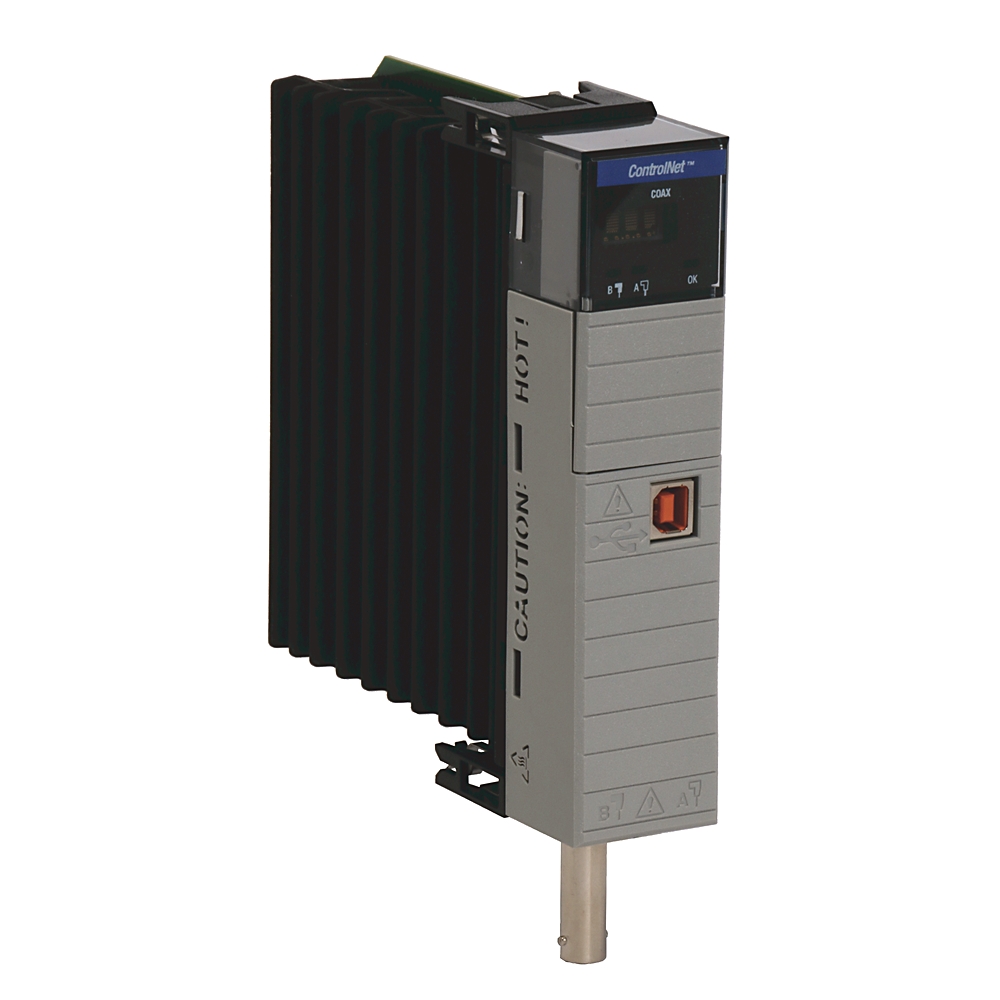

ControlLogix Communication Module
Catalog #: 1756-CN2RK
| Communication | ControlNet |
|---|---|
| Conformal Coating | True |
| Connection Cables | 1 m Tap |
| Interface | 2 ControlNet BNC's |
| Number Of Channels | 2 |
| With optical interface | False |
|---|---|
| Supporting protocol for TCP/IP | False |
| Supporting protocol for DeviceNet | False |
| Supporting protocol for other bus systems | True |
| Redundancy | True |
| IO link master | False |
| Supporting protocol for DeviceNet Safety | False |
| Supporting protocol for EtherNet/IP | False |
| Transmission rate | 5000 kbps |
| Logix communication connections | 128 |
| Power dissipation | 6.7 W |
| Thermal dissipation | 22.9 btu/h |
| ControlNet port | 2 ControlNet BNC |
| Enclosure type rating | None (open-style) |
| Number of nodes, max | 99 nodes |
| Current draw | 1300mA @ 5.1V DC, 3mA @ 24V DC |
| ControlNet cable | 1786-RG6 quad shield RG6 coaxial cable |
| Wiring category | 1 - on ControlNet ports, 3 - on USB ports |
| Connections supported, max | 131 maximum |
| Isolation voltage | Standard: 30V (continuous), basic insulation type, ControlNet network to backplane, Redundant: 30V (continuous), basic insulation type, ControlNet A/B to backplane, and, ControlNet A to ControlNet B, USB to backplane and USB to ControlNet, No isolation be |
| Supporting protocol for LON | False |
| Supporting protocol for ASI | False |
| Supporting protocol for PROFIBUS | False |
| Supporting protocol for CAN | False |
| Supporting protocol for INTERBUS | False |
| Supporting protocol for KNX | False |
| Supporting protocol for Modbus | False |
| Supporting protocol for Data-Highway | False |
| Supporting protocol for SUCONET | False |
| With potential separation | False |
| Supporting protocol for SERCOS | False |
| Supporting protocol for INTERBUS-Safety | False |
| Radio standard Bluetooth | False |
| Radio standard Wi-Fi 802.11 | False |
| Supporting protocol for AS-Interface Safety at Work | False |
| Supporting protocol for Foundation Fieldbus | False |
| Supporting protocol for PROFINET CBA | False |
| Supporting protocol for PROFINET IO | False |
| Supporting protocol for PROFIsafe | False |
| Supporting protocol for SafetyBUS p | False |
| Radio standard GPRS | False |
| Radio standard GSM | False |
| Radio standard UMTS | False |
| Slot width | 1 |
| Surrounding air temperature, max | 60 °C |
|---|---|
| Storage temperature | -40 to 85 °C |
| Emissions | CISPR 11: Class A |
| Vibration | 2 G @ 10...500 Hz |
| ESD immunity | 6 kV contact discharges, 8 kV air discharges |
| EFT/B immunity | ±3kV @ 5kHz on ControlNet ports |
| Relative humidity | 5...95% noncondensing |
| Shock | Operating: 30 G, Nonoperating: 30 G |
| Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Surge transient immunity | ±2 kV line-earth (CM) on ControlNet ports |
| Operating temperature | 0 to 60 °C |
| Radiated RF immunity | 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz |
| North American temperature code | T4A |
|---|---|
| IEC temperature code | T4 |
| Weight, approx | 0.293 kg |
|---|---|
| Module location | Chassis based, any slot |
Sales Info
| Repairable | REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 5.461 |
| Lead Time | 42 |
| Dimension Width | 21.844 |
| Dimension Length | 17.907 |
| Stock Status | NON_STOCKED |
| Weight | 0.404 |
| Weight Unit | KG |
| Dimension Unit | CM |
