I-Sense 6-Channel Voltage Sag Detector
Catalog #: 1608S-6V480K
Rockwell Automation announces that as of
December 01, 2024,
the I-Sense 6-Channel Voltage Sag Detector will be discontinued and no longer available
for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
December 01, 2024
Replacement Category:
No planned RA replacement
Rockwell Automation announces that as of
December 01, 2024,
the I-Sense 6-Channel Voltage Sag Detector will be discontinued and no longer available for
sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
December 01, 2024
Replacement Category:
No planned RA replacement
| Depth | 3.0 In. (75 mm) |
|---|---|
| Frequency Rating | 45 to 65 Hz |
| Height | 11.4 In. (291 mm) |
| Measurement inputs | Up to 6 channels |
|---|---|

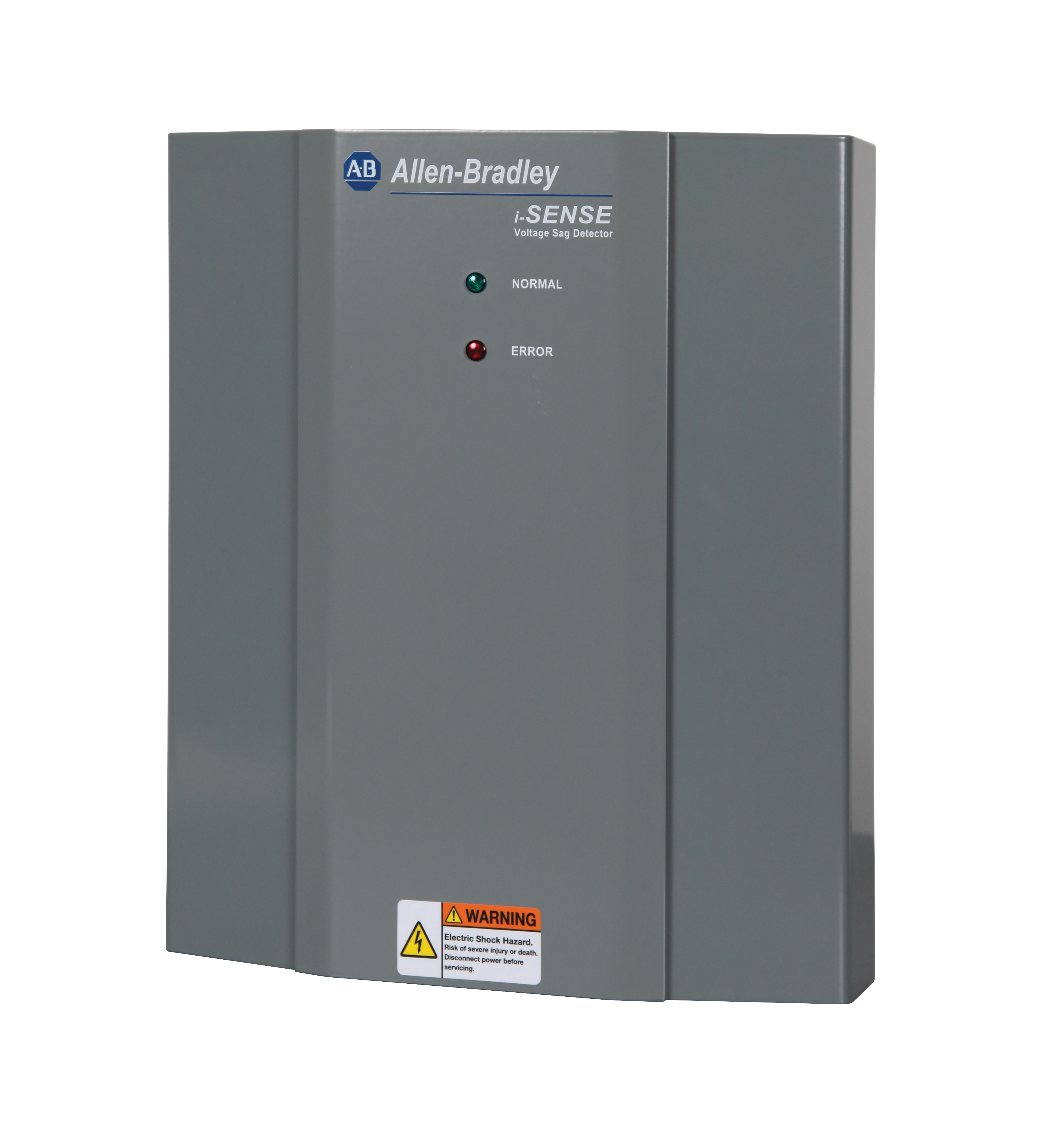

| Description | I-Sense 6-Channel Voltage Sag Detector |
| Nominal voltage | User-selectable, 100V-480Vrms, 1-phase or 3-phase immune to voltage fluctuation up to ±10% of nominal and transient over voltages typically present on mains supply (impulse withstand Category II of IEC 60364-4-443) |
| Type of device | Other |
| Waveform capture rate | 32 sAle/cycle |
| Sampling rate | 5760 sAle/s |
| Frequency | 45…65 Hz, auto-sensing |
| RMS voltage measurement accuracy | 0.2% typical, ±2% maximum (of full-scale) True rms |
| Data storage | Non-volatile event storage >300 events, Memory cleared after automatic up load to i-Grid |
| Voltage deviation event detection trigger | 1/2-cycle rms voltage ≤87% or ≥115% of set nominal, Adaptive waveform deviation detection of transient events |
| Time stamp | ±0.1 s Typical accuracy Real-time clock synchronized to UTC (NIST standard) daily, via i-Grid and SNTP protocol |
| Periodic (PRMS) data logging | Minimum, Maximum and Average rms voltage recorded for each 10-minute period, Min./Max. are lowest/highest sliding 0.5 -cycle rms period |
| Voltage deviation event storage | 8 cycles waveform data (-1...+3 cycles at event start and -3...+1 cycles at the event end), Continuous rms voltage trend, up to 2 min |
| Power supply and battery backup | Powered from Channel 1 (L1-L2 or L1-N), <25VA load, 9V DC external power supply (not provided - for configuration only) , Rechargeable batteries enable measurement & communication during power interruptions for up to 2 min |
| Depth | 75 mm |
|---|---|
| Height | 291 mm |
| Width | 247 mm |
| Weight | 3.6 kg |
| Operating temperature | 0 °C |
|---|---|
| Storage temperature | -40 °C |
| Altitude | 2000 @ 40 °C |
| Relative humidity | 0...95% noncondensing |
| Indicators | Red and green, Front-panel status indicators |
|---|---|
| Internet communication | Over port 80 via HTTP protocol. Outgoing only |
| Ethernet network | IEEE 802.3 10 Base-T (10 Mb/s), 8P8C (RJ45) modular connector |
| i-Sense management console | On-board web server for configuration and status, password protected |
| Modem (optional) | PSTN (analog telephone) RJ11 modular connector, Most global phone systems supported |
| Enclosure | NEMA 1 (IP20). Indoor use only. Only non-conducting pollution (degree II) |
|---|
