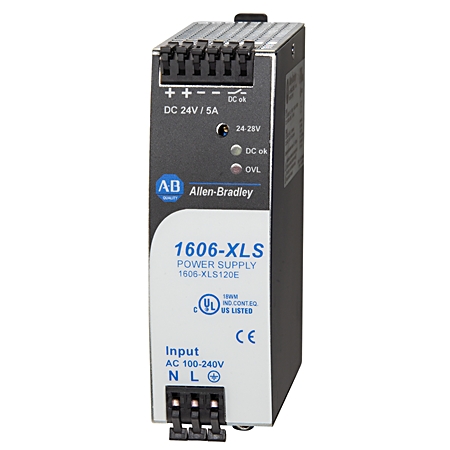

| Product Family | Power Supply XLS |
|---|
| Nominal value output voltage 1 | 24 V |
|---|---|
| Secondary voltage adjustable | True |
| Power output | 120 W |
| Voltage type of supply voltage | AC/DC |
| Rated supply voltage at DC | 110 V |
| Derating | 3 w/°c |
| DC OK relay contact | True |
| Input inrush current limiter | Active |
| Output voltage | 24...28V DC |
| Power factor | 0.91 typical |
| Operational range | 88...360V DC |
| Reserve power (typ. 4 s) | 7.5A @ 24V DC |
| Rated output current | 5A @ 24V DC |
| External input fuse, min | B-6 A or C-3 A |
| Power losses | 9.4 W typical |
| Sub group | Performance family |
| Hold-up time | 33 to 59 ms |
| Efficiency | 92.7% typical |
| Input inrush current | 9 A/11 A |
| Input voltage | 100...240V @ AC, 47...63 Hz |
| Rated input current | 1.4A @ 100V AC |
| Special feature | Active PFC, Class 1 division 2, semi F47, 9) ABS/GL/RINA (marine) |
| Output voltage stabilized | True |
| Rail mounting possible | True |
| Stabilized | True |
| Height | 124 mm |
|---|---|
| Depth | 117 mm |
| Direct mounting possible | False |
| Width | 40 mm |
| Degree of protection (IP) | IP20 |
| Type of electric connection | Spring clA connection |
| Special functions | No special function |
| MTBF | 831 kh (40 °C, SN29500) |
| Wall mounting possible | True |
| Degree of protection (NEMA) | Other |
| Ripple and noise, max | 50 mV |
|---|---|
| Operating temperature | -25 °C |
| Lifetime, min | 89 kh (+40 °C) |
| Non-operating temperature range | -40 to 85 °C |
| Weight | 620 g |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | true |
| Quick Turnaround | false |
| Dimension Height | 6.299 |
| Lead Time | 5 |
| Dimension Width | 15.088 |
| Dimension Length | 14.3 |
| Stock Status | STOCKED |
| Weight | 0.721 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3D STEP model (STP) | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 3D STEP model (STP) Download (ZIP) |
| Product Drawing Drawing (DXF) |
Sign in to your Rockwell Automation account to view and download technical drawings.
登录
| 类型 | 资源 | 发布 |
|---|---|---|
| General | Installation Instructions | 1606-IN005 |
| General | Short Circuit Ratings Data Sheet | -- |
| General | Product Cutsheet | -- |
| Technical Data | 1606-td002_-en-p | 1606-TD002 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- Eurasion Economic Community
- Australian RCM
- Semiconductor Inds Immunit
This product was certified with the above certifications as of 2025-04-22. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Sign in to your Rockwell Automation account to view Knowledgebase Articles.
登录
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Product Family | Power Supply XLS |
|---|
| Nominal value output voltage 1 | 24 V |
|---|---|
| Secondary voltage adjustable | True |
| Power output | 120 W |
| Voltage type of supply voltage | AC/DC |
| Rated supply voltage at DC | 110 V |
| Derating | 3 w/°c |
| DC OK relay contact | True |
| Input inrush current limiter | Active |
| Output voltage | 24...28V DC |
| Power factor | 0.91 typical |
| Operational range | 88...360V DC |
| Reserve power (typ. 4 s) | 7.5A @ 24V DC |
| Rated output current | 5A @ 24V DC |
| External input fuse, min | B-6 A or C-3 A |
| Power losses | 9.4 W typical |
| Sub group | Performance family |
| Hold-up time | 33 to 59 ms |
| Efficiency | 92.7% typical |
| Input inrush current | 9 A/11 A |
| Input voltage | 100...240V @ AC, 47...63 Hz |
| Rated input current | 1.4A @ 100V AC |
| Special feature | Active PFC, Class 1 division 2, semi F47, 9) ABS/GL/RINA (marine) |
| Output voltage stabilized | True |
| Rail mounting possible | True |
| Stabilized | True |
| Height | 124 mm |
|---|---|
| Depth | 117 mm |
| Direct mounting possible | False |
| Width | 40 mm |
| Degree of protection (IP) | IP20 |
| Type of electric connection | Spring clA connection |
| Special functions | No special function |
| MTBF | 831 kh (40 °C, SN29500) |
| Wall mounting possible | True |
| Degree of protection (NEMA) | Other |
| Ripple and noise, max | 50 mV |
|---|---|
| Operating temperature | -25 °C |
| Lifetime, min | 89 kh (+40 °C) |
| Non-operating temperature range | -40 to 85 °C |
| Weight | 620 g |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | true |
| Quick Turnaround | false |
| Dimension Height | 6.299 |
| Lead Time | 5 |
| Dimension Width | 15.088 |
| Dimension Length | 14.3 |
| Stock Status | STOCKED |
| Weight | 0.721 |
| Weight Unit | KG |
| Dimension Unit | CM |
Drawings
| Drawings | |
|---|---|
| 3D STEP model (STP) | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 3D STEP model (STP) Download (ZIP) |
| Product Drawing Drawing (DXF) |
Sign in to your Rockwell Automation account to view and download technical drawings.
登录
文档
|
Installation Instructions
General
1606-IN005 |
|
Short Circuit Ratings Data Sheet
General
-- |
|
Product Cutsheet
General
-- |
|
1606-td002_-en-p
Technical Data
1606-TD002 |
| 类型 | 资源 | 发布 |
|---|---|---|
| General | Installation Instructions | 1606-IN005 |
| General | Short Circuit Ratings Data Sheet | -- |
| General | Product Cutsheet | -- |
| Technical Data | 1606-td002_-en-p | 1606-TD002 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
认证
- Eurasion Economic Community
- Australian RCM
- Semiconductor Inds Immunit
This product was certified with the above certifications as of 2025-04-22. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Accessories
Alternative Products
Technotes
Sign in to your Rockwell Automation account to view Knowledgebase Articles.
登录
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
