| Cable Bandwidth | 100BASE-TX, 100 Mbit/s |
|---|---|
| Cable Type | Standard |
| First End Description | Straight Male |
| Category | 6 |
|---|---|
| Length | 2 m |
| Type of connector connection 1 | M12 |
| Cable outer diameter | 5.84 mm |
| Length, approx | 47 mm |
| Crossover | Standard |
| Number of conductors | 4 conductors (2-pair) |
| Secondary end connector | Micro style QD, (D-code QD) |

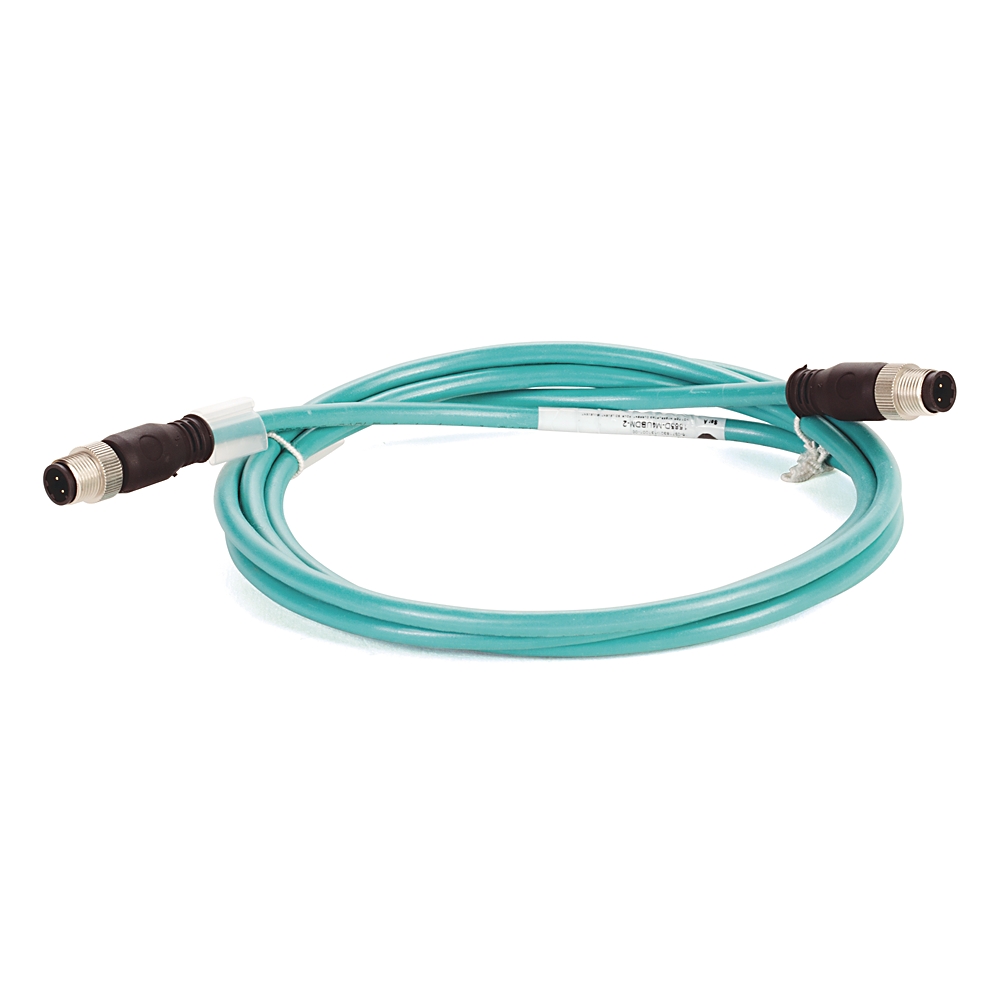

| Cable type | Teal, foil and braided shield, halogen-free PUR, high-flex, 26 AWG |
| Material | Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass |
| Material connector housing, connection 1 | Plastic |
| Special characteristic | Standard |
| Mounting | Front-mount |
| Bend radius | 10 x cable diam |
| AWG-size | 26 AWG |
|---|---|
| Voltage | 300 V |
| Cable bandwidth | 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring |
| Cable rating | C (ETL) US TYPE CMX, TIA 568B |
| Degree of protection (IP) | IP67 |
|---|---|
| Operating temperature | '-40 to 75 °C |
| Second end description | Straight male |
|---|---|
| First end description | Straight male |
| 图纸 | |
|---|---|
| 3-Dimensional STEP Model (STP) | Download (ZIP) |
| 图纸 |
|---|
| 3-Dimensional STEP Model (STP) Download (ZIP) |
| 类型 | 资源 | 出版 |
|---|---|---|
| General | Product Cutsheet | -- |
- CE
This product was certified with the above certifications as of 2025-09-09. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
技术规格
| Cable Bandwidth | 100BASE-TX, 100 Mbit/s |
|---|---|
| Cable Type | Standard |
| First End Description | Straight Male |
| Category | 6 |
|---|---|
| Length | 2 m |
| Type of connector connection 1 | M12 |
| Cable outer diameter | 5.84 mm |
| Length, approx | 47 mm |
| Crossover | Standard |
| Number of conductors | 4 conductors (2-pair) |
| Secondary end connector | Micro style QD, (D-code QD) |
| Cable type | Teal, foil and braided shield, halogen-free PUR, high-flex, 26 AWG |
| Material | Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass |
| Material connector housing, connection 1 | Plastic |
| Special characteristic | Standard |
| Mounting | Front-mount |
| Bend radius | 10 x cable diam |
| AWG-size | 26 AWG |
|---|---|
| Voltage | 300 V |
| Cable bandwidth | 100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring |
| Cable rating | C (ETL) US TYPE CMX, TIA 568B |
| Degree of protection (IP) | IP67 |
|---|---|
| Operating temperature | '-40 to 75 °C |
| Second end description | Straight male |
|---|---|
| First end description | Straight male |
图纸
| 图纸 | |
|---|---|
| 3-Dimensional STEP Model (STP) | Download (ZIP) |
| 图纸 |
|---|
| 3-Dimensional STEP Model (STP) Download (ZIP) |
文档
|
Product Cutsheet
General
-- |
| 类型 | 资源 | 出版 |
|---|---|---|
| General | Product Cutsheet | -- |
认证
- CE
This product was certified with the above certifications as of 2025-09-09. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
