| Armour | False |
|---|---|
| Braid | False |
| Conductor Material | Tin Plated Copper |
| Number of Conductors | 2 |
| Outside Diameter | 4.95 (0.195) mm (in) nom |
| Shield | True |
| Strands | 21 AWG |
| Number of cores | 1 |
|---|---|
| Material core insulation | Ethylene tetrafluoroethylene (ETFE) |
| Conductor weight | 40 kg/km |
| Operating temperature | -10 °C |
|---|
| Conductor resistance | 40.7 Ω/km @ 20 °C, maximum |
|---|---|
| Impedance | 50 Ω ±2 |
| Capacitance | Maximum 105 Pf/m at 1 kHz |

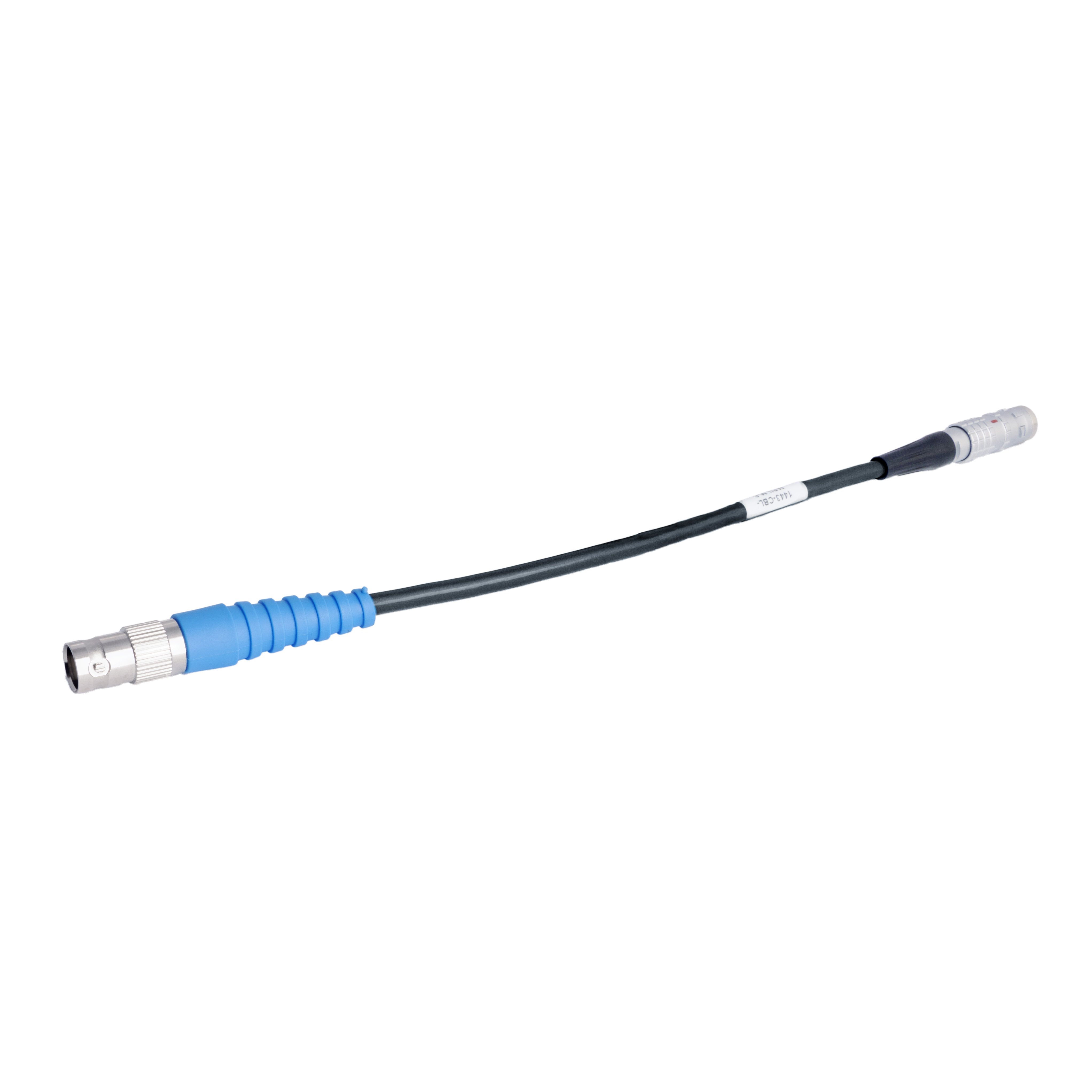

| Description | 1 ft, lemo to BNC adapter |
| Conductor surface | Tinned |
| Stationary temperature | -40 °C |
| Propagation time | Approximately 66% (5.1 ns/m) |
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 2.921 |
| Lead Time | 5 |
| Dimension Width | 16.383 |
| Dimension Length | 18.161 |
| Stock Status | NON_STOCKED |
| Weight | 81.647 |
| Weight Unit | G |
| Dimension Unit | CM |
| 类型 | 资源 | 发布 |
|---|---|---|
| General | Product Cutsheet | -- |
| Technical Data | 1443-td001_-en-p | 1443-TD001 |
