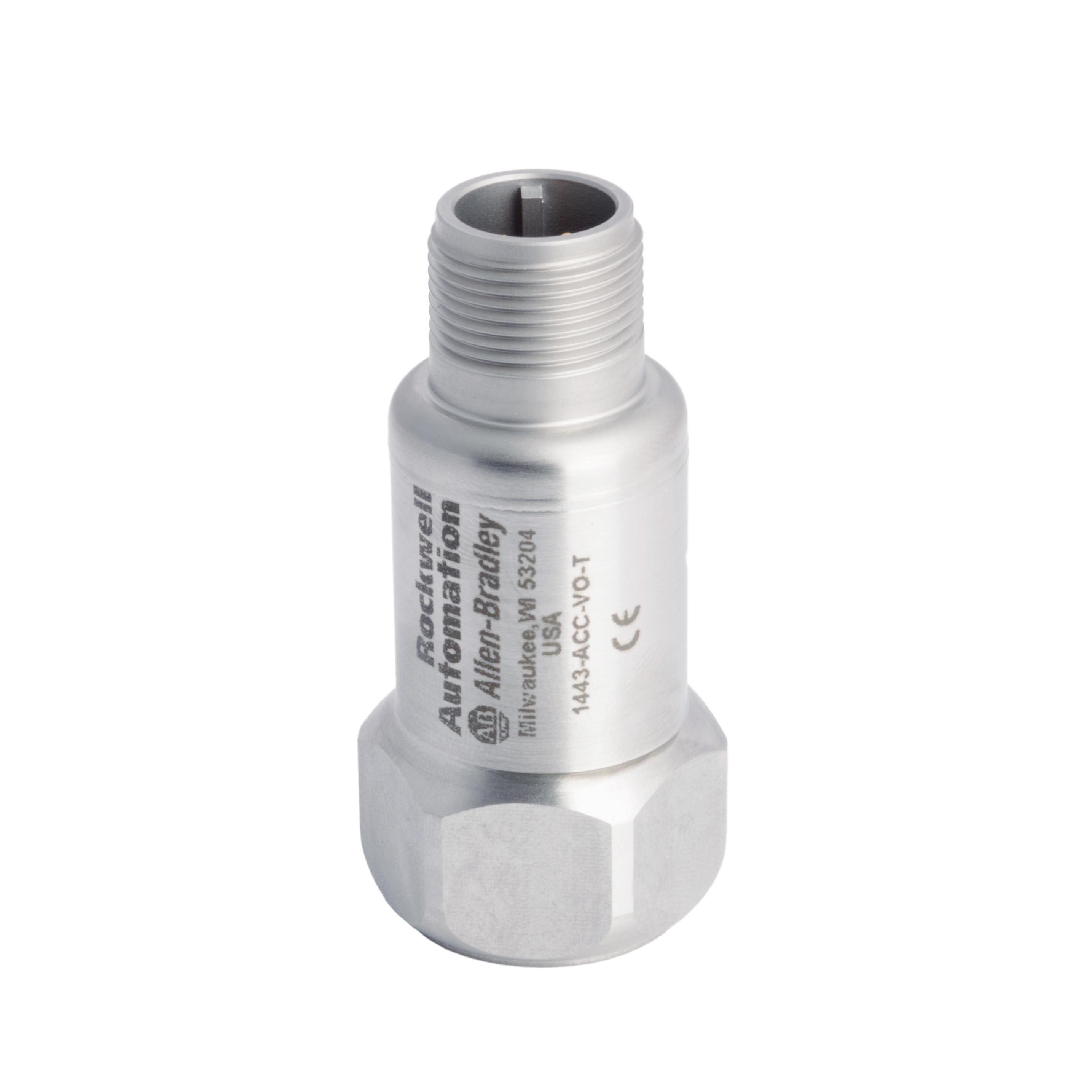

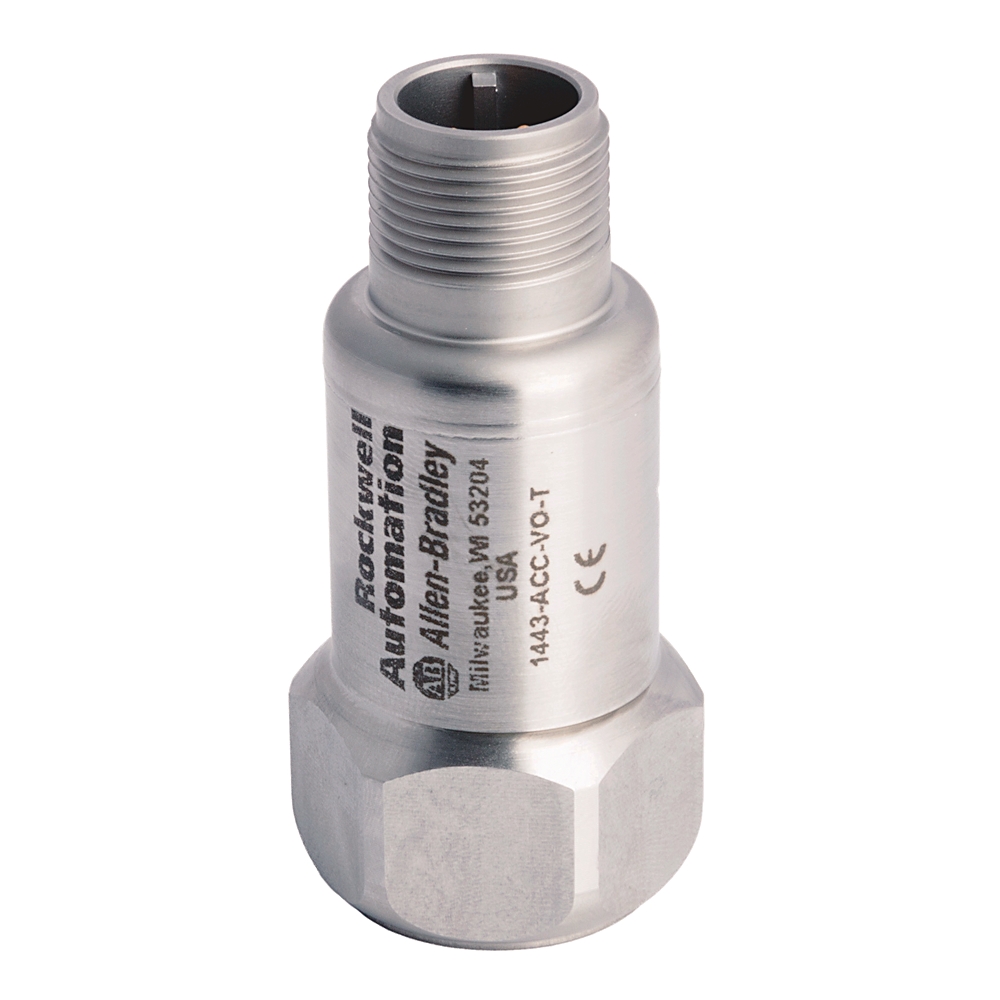

| Dimensions | 25 x 40 (1 x 1.6) mm (in) |
|---|---|
| Frequency Rating | 2…6000 Hz |
| Sensitivity | 100 mV/in/sec |
| Diameter | 25 mm |
|---|---|
| Length | 40 mm |
| Weight, approx | 110 g (3.9 oz) |
| Housing material | Stainless steel |
| Enclosure rating | IP66 to 68, depending upon the cable assembly used |
| Measuring range vibration frequency | 2 khz |
|---|---|
| Output impedance | <200 Ω |
| Constant current excitation | 2 mA |
| Resonant frequency, typical | 22 kHz (1320 kcpm) |
| Electrical connector | Two-pin MIL-C-5015 |
| Sensitivity | 4 mV/(mm/s) 100 mV/(in/s) |
| Frequency range (±3 dB) | 2 to 6 kHz (120 to 360,000 cpm) |
| Broadband resolution | (1 to 10,000 Hz), typical @ 11.4 µm/s, 450 µin./s |
| Type of electric connection | Plug |
| Type of interface | IEPE |
| Non-linearity | ±1% |
| Transverse sensitivity | <5% |
| Electrical protection | 500 V |
| Electrical connector position | Top |
| Discharge time constant | ≥0.5 s |
| Excitation voltage | 18 to 28V DC |
| Output bias voltage | 10 to 12V DC |
| Electrical isolation | >10^10 Ω, (case) |
| Output | ±1.27 m/s (±50 in/s) |
| Measurement range peak | ±1000 mm/s (±39.4 in/s) |
| Settling time | <2.0 s (within 1% of bias) |
| Frequency (±10%) | 3.5 to 4 kHz (210 to 240,000 cpm) |
| Temperature range | -55 °C |
|---|---|
| Degree of protection (IP) | IP68 |
| List of degrees of protection (IP) | IP66, IP67, IP68 |
| Overload limit (shock) | 49,050 m/s2 pk (5000 g pk) |
| Type of fastening | Screwing |
|---|---|
| Sensing element | Ceramic |
| Sensing geometry | Compression |
| Mounting torque | 8 N.m (6 ft.lb) |
| Sealing | Welded hermetic |
| Mounting thread | M8 x 1.25 mm male, 1/4-28 UNF male |
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 4.826 |
| Lead Time | 5 |
| Dimension Width | 4.953 |
| Dimension Length | 17.272 |
| Stock Status | NON_STOCKED |
| Weight | 0.141 |
| Weight Unit | KG |
| Dimension Unit | CM |
