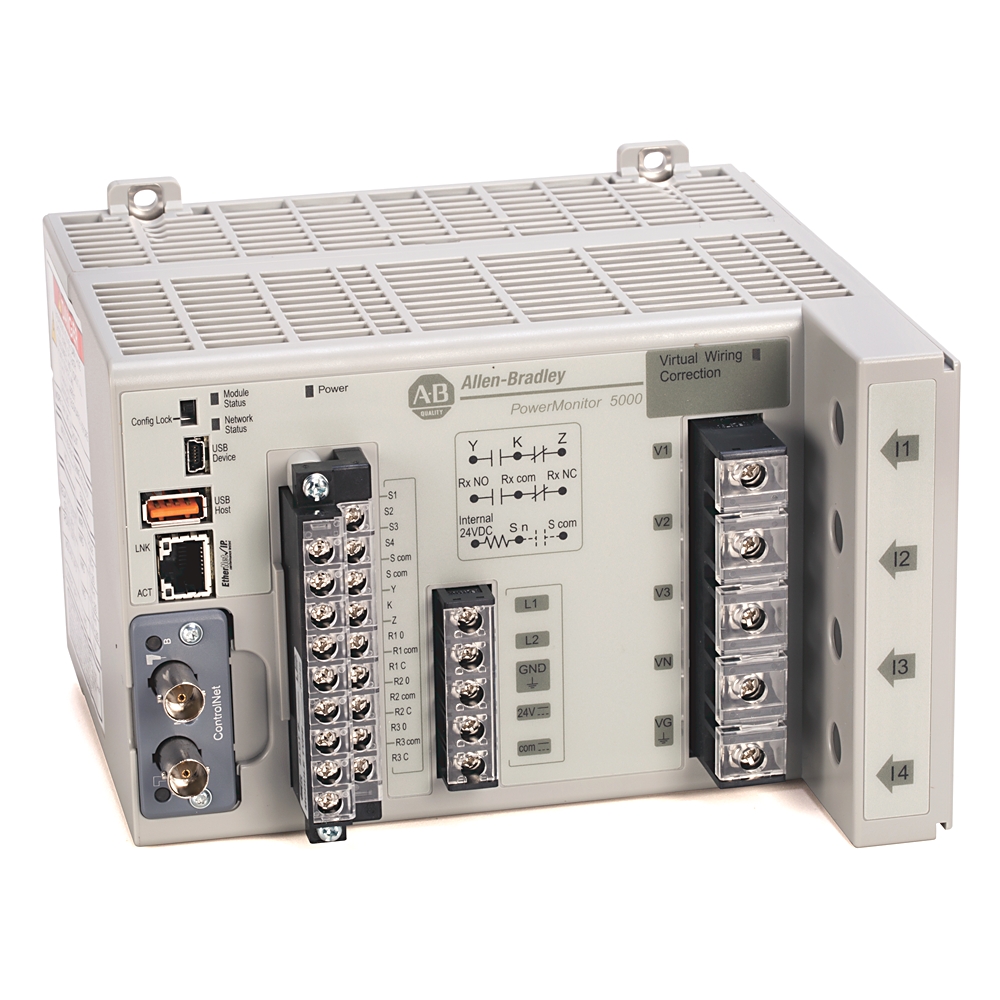

Catalog #: 1426-M6E-CNT
Lifecycle status: Active
Allen-Bradley 1426-M6E-CNT product image
Allen-Bradley 1426-M6E-CNT product image
Allen-Bradley 1426-M6E-CNT product image
Allen Bradley
PrintPrint
Print page
EmailEmail
Share page
Product RegistrationProduct Registration
Print QR code
Lifecycle status: Active
Add to BoM
  • Register Product
  • Get Support
Technical Specifications
Drawings
Documents
Certifications
Accessories
Technotes
Accuracy 0.20%
Alarm True
Communications ControlNet and EtherNet/IP
Frequency Rating 40-75Hz
Interface Webpage
Metering Voltage 600VLL AC
Output 4 Digital Relays
Vibration 2 G
Shock 50 G, nonoperating
Dielectric withstand UL61010, EN61010
Storage temperature -40 to 85 °C
Operating temperature -20 to 70 °C
Altitude 2000 m, max
Installation location Indoor use only
Humidity 5...95% noncondensing
Height 132 mm
Width 185 mm
Control power and ground wiring terminals • 120...240V AC @ 50/60Hz, or 120...240V DC • 24V DC
Virtual wiring correction indicator Indicates that a virtual wiring correction command has been applied to resolve wiring errors without rewiring
Voltage sensing wiring terminals • Direct connect to up to 690V AC 3-phase line to line • Maximum nominal line to ground voltage 690 • Use potential transformers (PTs) for higher voltages • Neutral voltage and ground voltage connections
Device status indicators • Device status - OFF: No control power - Flashing GREEN/RED: Self-test - Flashing GREEN: Power monitor has not been configured - GREEN: Power monitor is running - Flashing RED: Power monitor has detected a recoverable minor fault - RED: Power monitor has detected a non-recoverable major fault
Ethernet network port - standard RJ45 jack with status indicators Ethernet port hardware is included on all models. these protocols and functions are supported: • EtherNet/IP™ network • HTML web page for configuration and data access Ethernet indicators • LNK indicator - Solid GREEN: IP link established - Off: No link established • ACT indicator - Flashing YELLOW: Data present on Ethernet port - Off: No data activity present
USB host port USB standard A receptacle. Not used in this model.
Power •Power status - OFF: no control power - GREEN: control power is present
Current sensing wiring terminals Nominal input current 5 A, Use current transformers (CTs) to connect to power system
Configuration lock switch When enabled, this switch helps prevent changes in configuration that can affect revenue accuracy.
USB device port The USB device port is a USB Mini-B receptacle that accepts standard USB mini-B plugs, for connection to a host device, such as a notebook computer.
Status input, KYZ output, and control relay wiring terminals • Four internally powered (24V DC) status inputs • Status input 2 can be used for demand period synchronization • KYZ DPDT solid-state relay for signaling use • Three DPDT control relays
Network status indicators • Network status (Native Ethernet port) - OFF: No control power - Flashing GREEN/RED: Self-test - Flashing GREEN: No CIP connection - Solid GREEN: CIP connection established - Flashing RED: CIP connection timed out - Solid RED: Duplicate IP address detected
Optional communication port DeviceNet and ControlNet networks • Module status - OFF: No control power - Flashing GREEN/RED: Self-test - Flashing GREEN: Power monitor has not been configured - GREEN: Power monitor is running - Flashing RED: Power monitor has detected a recoverable minor fault - RED: Power monitor has detected a non-recoverable major fault • Network status - OFF: No control power - Flashing GREEN/RED: Self-test - Flashing GREEN: No CIP connection - Solid GREEN: CIP connection established - Flashing RED: CIP connection timed out - Solid RED: Duplicate address detected
IC rating class UL 508, CSA 22.2 @ DC: Q300
Resistive load switching 10A @ 24V DC, maximum
Load switching 100mA @ 5V AC, 50/60 Hz, RMS, minimum
Motor load switching 1/3HP @ 125V AC, 50/60 Hz, RMS, maximum
Make values (Inductive load) 30A @ 120V AC, 50/60 Hz, RMS, maximum
Break values (Inductive load) 3A @ 120V AC, 50/60 Hz, RMS, maximum
Crest factor V-V, V-N, and I, per phase: Yes
Reactive energy (kVARh) True
Frequency Nominal: 60 Hz
Real energy (kWh) True
Reactive power (kVAR) True
Real power (kW) True
Apparent power (kVA) True
Real power demand (kW) True
Reactive power demand (kVAR) True
Apparent power demand (kVA) True
Demand power factor True
Projected kW demand True
Projected kVAR demand True
Projected kVA demand True
Voltage unbalance True
Current unbalance True
Voltage, L-L and L-N True
Current per phase and total True
Symmetrical component analysis True
True power factor per phase and total True
Displacement power factor per phase and total True
Apparent energy (kVAh) True
Demand, amps True
Projected amps demand True
Current consumption True
Control power 12VA @ 24V DC
Current sense inputs: I1, I2, I3 Accuracy: ±0.1% @ 25°C 50/60 Hz unity power factor
Status inputs True
Configurable via webpage True
CIP energy object True
Security True
Wiring diagnostics True
Virtual wiring correction True
Network time synchronization True
Network demand synchronization True
IEEE 1588 precision time protocol True
Pulse (digital) output (relay and KYZ) True
Setpoint programming True
Sag and swell detection True
Web page True
K-factor True
Revenue accuracy True
Total harmonic distortion (THD) True
Waveform capture True
Individual harmonics (DC-63rd) True
Event synchronization True
Control power 12VA @ 24V DC
Current sense inputs: I1, I2, I3 Accuracy: ±0.1% @ 25°C 50/60 Hz unity power factor
Power functions • ANSI C12.20 -2010 class 0.2 clause 5.5.4 • EN 62053-22 -2003 class 0.2 accuracy clause 8
Demand functions • ANSI C12.20 -2010 class 0.2 clause 5.5.4 • EN 62053-22 -2003 class 0.2 accuracy clause 8
Metering update rates One update per line cycle, 1024 sAles per cycle per channel
VG Connect to power system earth ground only, This connection is a functional ground.
Energy functions • ANSI C12.20 -2010 class 0.2 clause 5.5.4 • EN 62053-22 -2003 class 0.2 accuracy clause 8
Description PowerMonitor 5000 M6 unit with native ethernet and optional controlnet network communication
Ampere meter True
Blind power meter True
Frequency meter True
Pulse counter True
Voltmeter True
Effective power measurement device True
Depth 178 mm
Time of use log True
Energy log True
Minimum/maximum log True
Load factor log True
Alarm log True
Data log True
Event log True
Setpoint log True
Power quality log True
Waveform log True
Trigger data log True
Snapshot Log True
Waveform synchronization broadcast (WSB) True
Logical setpoint programming True
EtherNet/IP True
ControlNet True

Sales Info
Repairable NOT_REPAIRABLE
Preferred Availability false
Quick Turnaround false
Dimension Height 17.094
Lead Time 71
Dimension Width 26.797
Dimension Length 24.79
Stock Status NON_STOCKED
Weight 1.846
Weight Unit KG
Dimension Unit CM
Drawings
3D STEP Model (STP) Download (ZIP)
2D Drawing (PDF) Download (PDF)
3 DImensional Drawing (PDF) Download (PDF)
Product Drawing Drawing (DXF)
Drawings
3D STEP Model (STP) Download (ZIP)
2D Drawing (PDF) Download (PDF)
3 DImensional Drawing (PDF) Download (PDF)
Product Drawing Drawing (DXF)
Sign in to your Rockwell Automation account to view and download technical drawings.
登录
类型 资源 发布
General PowerMonitor 5000 USB Driver Installation and Configuration Instructions 1426-IN001
General Product Cutsheet --
General PowerMonitor 5000 Product Profile 1426-PP001
User Manual 1426-um001_-en-p 1426-UM001
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Visit the Technical Documentation Center Chevron RightChevron Right Search the Literature Library Chevron RightChevron Right
Australian RCM
  • Australian RCM

This product was certified with the above certifications as of 2025-05-14. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

每页条目数:
1-1 的 1
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase Chevron RightChevron Right
Technical Specifications
Accuracy 0.20%
Alarm True
Communications ControlNet and EtherNet/IP
Frequency Rating 40-75Hz
Interface Webpage
Metering Voltage 600VLL AC
Output 4 Digital Relays
Vibration 2 G
Shock 50 G, nonoperating
Dielectric withstand UL61010, EN61010
Storage temperature -40 to 85 °C
Operating temperature -20 to 70 °C
Altitude 2000 m, max
Installation location Indoor use only
Humidity 5...95% noncondensing
Height 132 mm
Width 185 mm
Control power and ground wiring terminals • 120...240V AC @ 50/60Hz, or 120...240V DC • 24V DC
Virtual wiring correction indicator Indicates that a virtual wiring correction command has been applied to resolve wiring errors without rewiring
Voltage sensing wiring terminals • Direct connect to up to 690V AC 3-phase line to line • Maximum nominal line to ground voltage 690 • Use potential transformers (PTs) for higher voltages • Neutral voltage and ground voltage connections
Device status indicators • Device status - OFF: No control power - Flashing GREEN/RED: Self-test - Flashing GREEN: Power monitor has not been configured - GREEN: Power monitor is running - Flashing RED: Power monitor has detected a recoverable minor fault - RED: Power monitor has detected a non-recoverable major fault
Ethernet network port - standard RJ45 jack with status indicators Ethernet port hardware is included on all models. these protocols and functions are supported: • EtherNet/IP™ network • HTML web page for configuration and data access Ethernet indicators • LNK indicator - Solid GREEN: IP link established - Off: No link established • ACT indicator - Flashing YELLOW: Data present on Ethernet port - Off: No data activity present
USB host port USB standard A receptacle. Not used in this model.
Power •Power status - OFF: no control power - GREEN: control power is present
Current sensing wiring terminals Nominal input current 5 A, Use current transformers (CTs) to connect to power system
Configuration lock switch When enabled, this switch helps prevent changes in configuration that can affect revenue accuracy.
USB device port The USB device port is a USB Mini-B receptacle that accepts standard USB mini-B plugs, for connection to a host device, such as a notebook computer.
Status input, KYZ output, and control relay wiring terminals • Four internally powered (24V DC) status inputs • Status input 2 can be used for demand period synchronization • KYZ DPDT solid-state relay for signaling use • Three DPDT control relays
Network status indicators • Network status (Native Ethernet port) - OFF: No control power - Flashing GREEN/RED: Self-test - Flashing GREEN: No CIP connection - Solid GREEN: CIP connection established - Flashing RED: CIP connection timed out - Solid RED: Duplicate IP address detected
Optional communication port DeviceNet and ControlNet networks • Module status - OFF: No control power - Flashing GREEN/RED: Self-test - Flashing GREEN: Power monitor has not been configured - GREEN: Power monitor is running - Flashing RED: Power monitor has detected a recoverable minor fault - RED: Power monitor has detected a non-recoverable major fault • Network status - OFF: No control power - Flashing GREEN/RED: Self-test - Flashing GREEN: No CIP connection - Solid GREEN: CIP connection established - Flashing RED: CIP connection timed out - Solid RED: Duplicate address detected
IC rating class UL 508, CSA 22.2 @ DC: Q300
Resistive load switching 10A @ 24V DC, maximum
Load switching 100mA @ 5V AC, 50/60 Hz, RMS, minimum
Motor load switching 1/3HP @ 125V AC, 50/60 Hz, RMS, maximum
Make values (Inductive load) 30A @ 120V AC, 50/60 Hz, RMS, maximum
Break values (Inductive load) 3A @ 120V AC, 50/60 Hz, RMS, maximum
Crest factor V-V, V-N, and I, per phase: Yes
Reactive energy (kVARh) True
Frequency Nominal: 60 Hz
Real energy (kWh) True
Reactive power (kVAR) True
Real power (kW) True
Apparent power (kVA) True
Real power demand (kW) True
Reactive power demand (kVAR) True
Apparent power demand (kVA) True
Demand power factor True
Projected kW demand True
Projected kVAR demand True
Projected kVA demand True
Voltage unbalance True
Current unbalance True
Voltage, L-L and L-N True
Current per phase and total True
Symmetrical component analysis True
True power factor per phase and total True
Displacement power factor per phase and total True
Apparent energy (kVAh) True
Demand, amps True
Projected amps demand True
Current consumption True
Control power 12VA @ 24V DC
Current sense inputs: I1, I2, I3 Accuracy: ±0.1% @ 25°C 50/60 Hz unity power factor
Status inputs True
Configurable via webpage True
CIP energy object True
Security True
Wiring diagnostics True
Virtual wiring correction True
Network time synchronization True
Network demand synchronization True
IEEE 1588 precision time protocol True
Pulse (digital) output (relay and KYZ) True
Setpoint programming True
Sag and swell detection True
Web page True
K-factor True
Revenue accuracy True
Total harmonic distortion (THD) True
Waveform capture True
Individual harmonics (DC-63rd) True
Event synchronization True
Control power 12VA @ 24V DC
Current sense inputs: I1, I2, I3 Accuracy: ±0.1% @ 25°C 50/60 Hz unity power factor
Power functions • ANSI C12.20 -2010 class 0.2 clause 5.5.4 • EN 62053-22 -2003 class 0.2 accuracy clause 8
Demand functions • ANSI C12.20 -2010 class 0.2 clause 5.5.4 • EN 62053-22 -2003 class 0.2 accuracy clause 8
Metering update rates One update per line cycle, 1024 sAles per cycle per channel
VG Connect to power system earth ground only, This connection is a functional ground.
Energy functions • ANSI C12.20 -2010 class 0.2 clause 5.5.4 • EN 62053-22 -2003 class 0.2 accuracy clause 8
Description PowerMonitor 5000 M6 unit with native ethernet and optional controlnet network communication
Ampere meter True
Blind power meter True
Frequency meter True
Pulse counter True
Voltmeter True
Effective power measurement device True
Depth 178 mm
Time of use log True
Energy log True
Minimum/maximum log True
Load factor log True
Alarm log True
Data log True
Event log True
Setpoint log True
Power quality log True
Waveform log True
Trigger data log True
Snapshot Log True
Waveform synchronization broadcast (WSB) True
Logical setpoint programming True
EtherNet/IP True
ControlNet True
Sales Info
Repairable NOT_REPAIRABLE
Preferred Availability false
Quick Turnaround false
Dimension Height 17.094
Lead Time 71
Dimension Width 26.797
Dimension Length 24.79
Stock Status NON_STOCKED
Weight 1.846
Weight Unit KG
Dimension Unit CM
