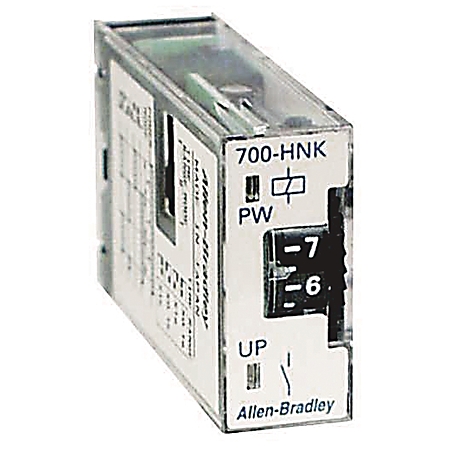

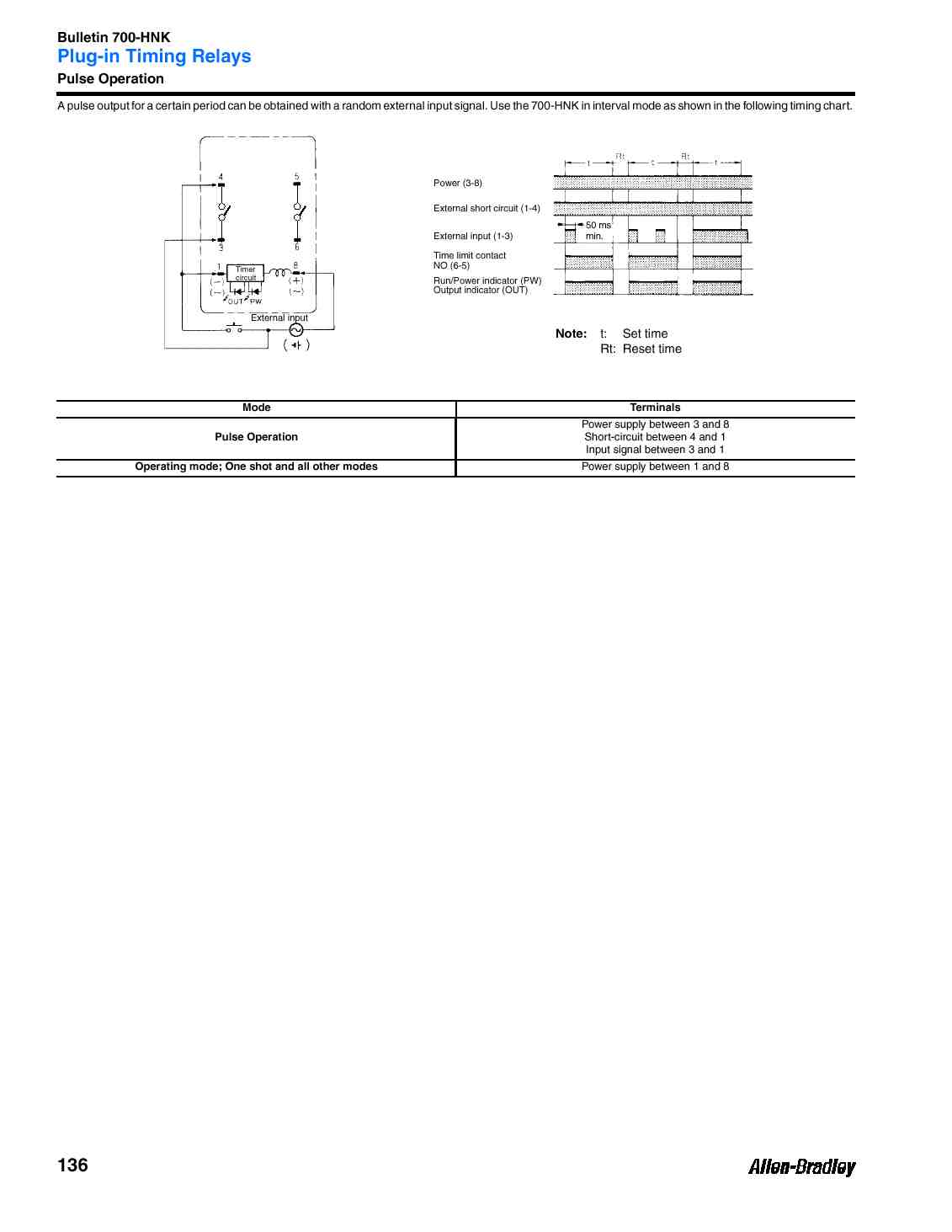

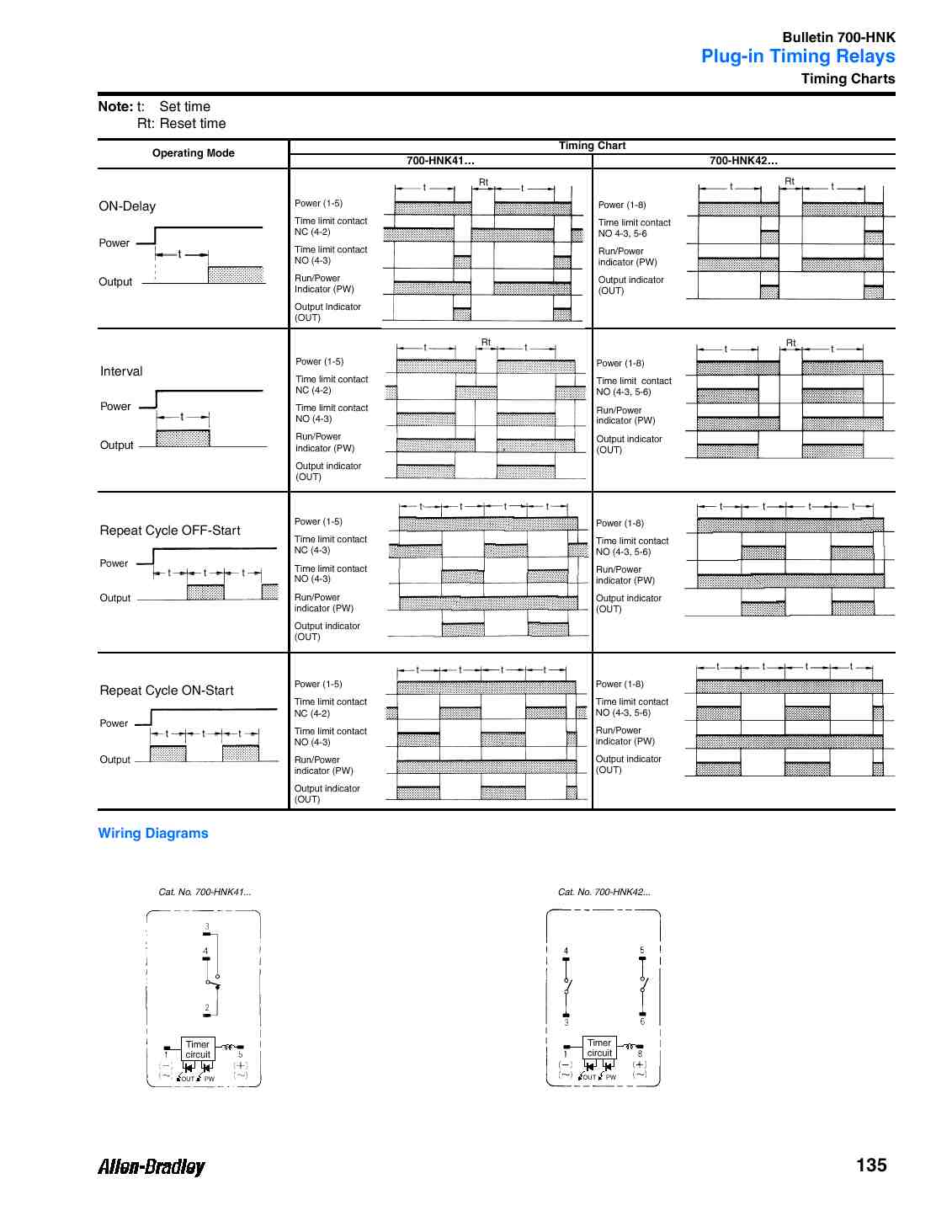

Mini Plug-in Timing Relay
Catalog #: 700-HNK41AZ12
Rockwell Automation announces that as of
September 23, 2024,
the Mini Plug-in Timing Relay will be discontinued and no longer available
for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
September 23, 2024
Replacement Category:
No planned RA replacement
Rockwell Automation announces that as of
September 23, 2024,
the Mini Plug-in Timing Relay will be discontinued and no longer available for
sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
September 23, 2024
Replacement Category:
No planned RA replacement
| Number of outputs, delayed, change-over contact | 1 |
|---|---|
| Voltage type for actuating | DC |
| Rated control supply voltage at DC | 12 V |
| Type of electric connection | Plug-in connection |
| Power consumption | Relay ON: approximate 0.5 W @ 24V DC |
| Operating voltage | 90...110% of rated supply voltage |
| Electrical life cycle | Minimum 100000 ops (3A @ 250V AC, resistive load at 1800 ops/hr) |
| Nominal current | 5 A |
|---|---|
| Suitable for DIN rail (top hat rail) mounting | False |
| Weight | 18 g |
| Mechanical life operations | 10000000 minimum ops (under no load at 1800 ops/hr) |
| Shock resistance | Malfunction: 100 m/s² |
| Vibration resistance | Malfunction: 10-55 Hz @ 0.5 mm single Alitude |
| Dielectric strength | 2000V AC @ 50/60Hz for 1 min (between operating circuit and control output, or contacts of different poles) |
| Suitable for front mounting | False |
| With plug-in socket | False |
| Operating temperature | -10 °C |
|---|---|
| Storage temperature | -25 °C |
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 3.505 |
| Lead Time | 5 |
| Dimension Width | 1.6 |
| Dimension Length | 6.706 |
| Stock Status | NON_STOCKED |
| Weight | 18.144 |
| Weight Unit | G |
| Dimension Unit | CM |
